Product Details

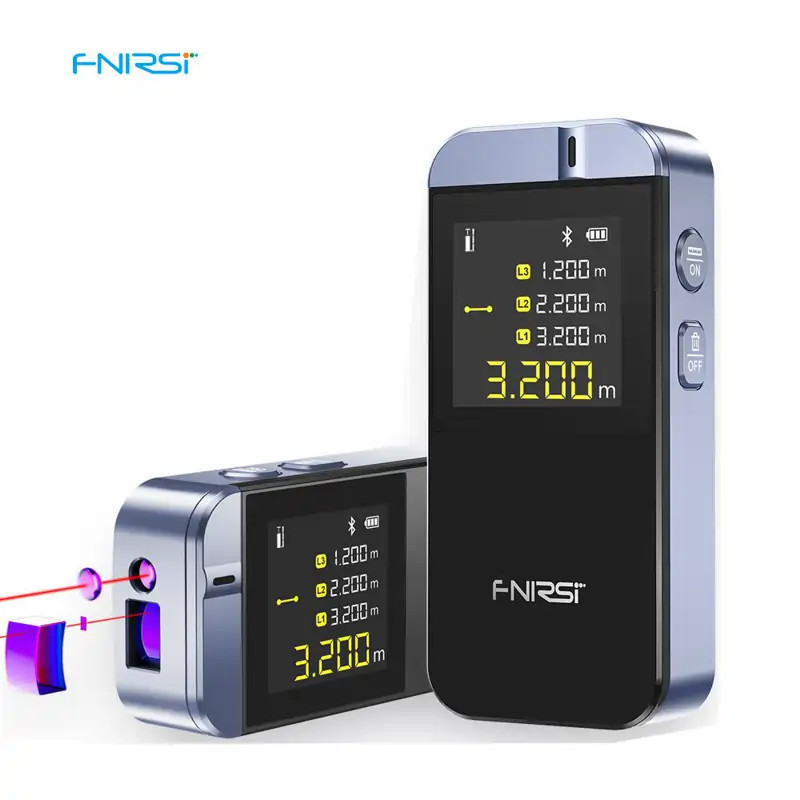

FNIESI IR40 - mini distance meter: 40 m, bluetooth, area, volume, pythagorean measurements

Stock: In stock
FNIESI IR40 - mini distance meter: 40 m, bluetooth, area, volume, pythagorean measurements
18 950 Ft , (14 921 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h

Suitable for everyday use. Compact size, Bluetooth data transmission, 40 m range, pythagorean, area, volume measurement, etc.

  • Specifications:

    • measuring range: 40 m*
    • laser class: Class 2 (IEC/EN60825-1/2014), <1mW kimenet
    • laser color: red
    • laser wavelenght: 620-670 nm
    • accuracy: ±2 mm
    • bluetooth connection to RangeFinder app.
    • 2 reference point
    • Pythagorean measurements **
    • area, volume measurement
    • display: black/white/yellow LCD
    • unit change
    • auto power off: laser 30 s, device 180 s
    • power: Li-ion battery
    • storage temperature: -10°C˘~+60°C
    • operating temperature: 0°C˘~+40°C
    • IP class: IP54

    * depends on ambient light conditions

    **precise measurement only possible with the same reference point



    Packing list:

    • 1 x FNIRSI IR40 distance meter
    • 1 x Type-C cable
    • 1 x manual
    • weight: 110 g
    • size: 11.5x9x3 cm

  • manufacturer
    FNIRSI
    unidirectional/bidirectional measurement
    one way
    measuring range (m)
    40
    laser color
    red
    laser class
    Class 2 (IEC/EN60825-1/2014), <1mW
    camera
    x
    bluetooth
    display type
    black-white-yellow
    rotating display
    digital protractor
    x
    digital bubble
    x
    laser wavelength (nm)
    620-670
    accuracy (mm)
    ±2
    reference points
    2
    max/min measurement
    x
    distance measurement
    area
    painter mode
    x
    volume
    trapezoid
    x
    trapezium calculation with angle
    x
    triangle area
    x
    circular area
    x
    cylinder volume
    x
    stake out
    x
    addition / subtraction
    x
    pythagorean measurements
    134
    triangle operations with angle calculation
    triangle operations with angle calculation
    triangle operations with gyroscope
    triangle operations with gyroscope
    delayed measurement
    x
    memory
    3
    sound signal
    x
    calibration
    unit switch
    power source
    400 mAh Li-ion
    charging interface
    USB-C
    tripod screw hole
    x
    storage temperature (°C)
    -10-+60
    working temperature (°C)
    0-+40
    laser off (s)
    30
    IP rating
    IP54
    device off (s)
    180
    product size (mm)
    80x35x18
    housing material
    plastic
    buttons
    plastic
    weight (g)
    40
    the package
    device with built in battery, USB cable, manual
    garantie
    1 year
    Stock
    In stock
    Article No.
    fni-ir40
    Weight
    220 g/pcs
  • android app:

    IOS app:
