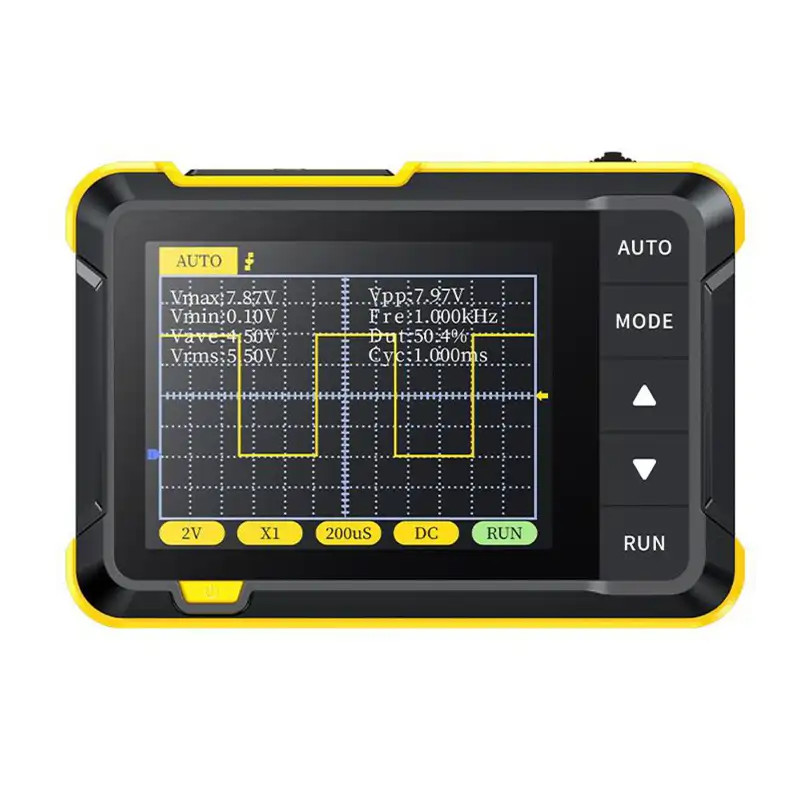

FNIRSI DSO152 - mini oscilloscope, extra accessory P6100 probe
Compact digital oscilloscope: 2.8" colour TFT display, 1000 mAh Li-ion battery. Sampling rate 2.5 MS/s, analogue bandwidth 200 kHz, extra accessory adapters and P6100 probe.
-
Specifications FNIRSI DSO152 FNIRSI DSO153 Real-time sample rate 2.5 MS/s 5 MS/s Analog bandwidth 0 ~ 200 kHz 1 MHz Input resistance 1 MΩ 1 MΩ Coupling AC/DC AC/DC Test voltage range 1:1 probe: 80 Vpp (±40 V) 1:1 probe: 80 Vpp (±40 V) 10:1 probe: 800 Vpp (±400 V) 10:1 probe: 800 Vpp (±400 V) Vertical sensitivity 10 mV/Div ~ 10 V/Div 10 mV/Div ~ 20 V/Div Time base range 10 μs/Div ~ 500 s/Div 500ns/Div ~ 20 s/Div Trigger mode Automatic, Regular and Single Automatic, Regular and Single Trigger type Rising edge, falling edge Rising edge, falling edge Waveform freeze √ √ Square wave calibration Frequency: 1K; Duty cycle:
50%; Amplitude: 3.3 VFrequency: 1K; Duty cycle:
50%; Amplitude: 3.3 VSignal generator Frequency x 0-10 KHz Duty cycle x 0-100% (rectangular and sawtooth waves) Amplitude x 0.1-3.3 V Waveforms x Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave. General Specifications Firmware upgrade √ √ Display 2.8 inch TFT color screen, 320x240 2.8 inch TFT color screen, 320x240 Powered by 1000 mAh rechargeable lithium battery 1000 mAh rechargeable lithium battery Charging USB Type-C; 5 V 1 A USB Type-C; 5 V 1 A Dimensions 100 mm × 70 mm × 20 mm 100 mm × 70 mm × 20 mm Weight 100 g 100 g Package Contents:
- 1 x DSO152
- 1 x type-c cable
- 1 x Common probe
- 1 x P6100 high voltage probe
- 1 x adapter
- 1 x manual
- weight: 170 g
- size: 120x90x40 mm
-
24 950 Ft , (19 646 Ft+VAT)
43 500 Ft , (34 252 Ft+VAT)
59 800 Ft , (47 087 Ft+VAT)
-
manufacturer FNIRSIgarantie 1 yearStock In stockArticle No. fni-dso152Weight 170 g/pcs
