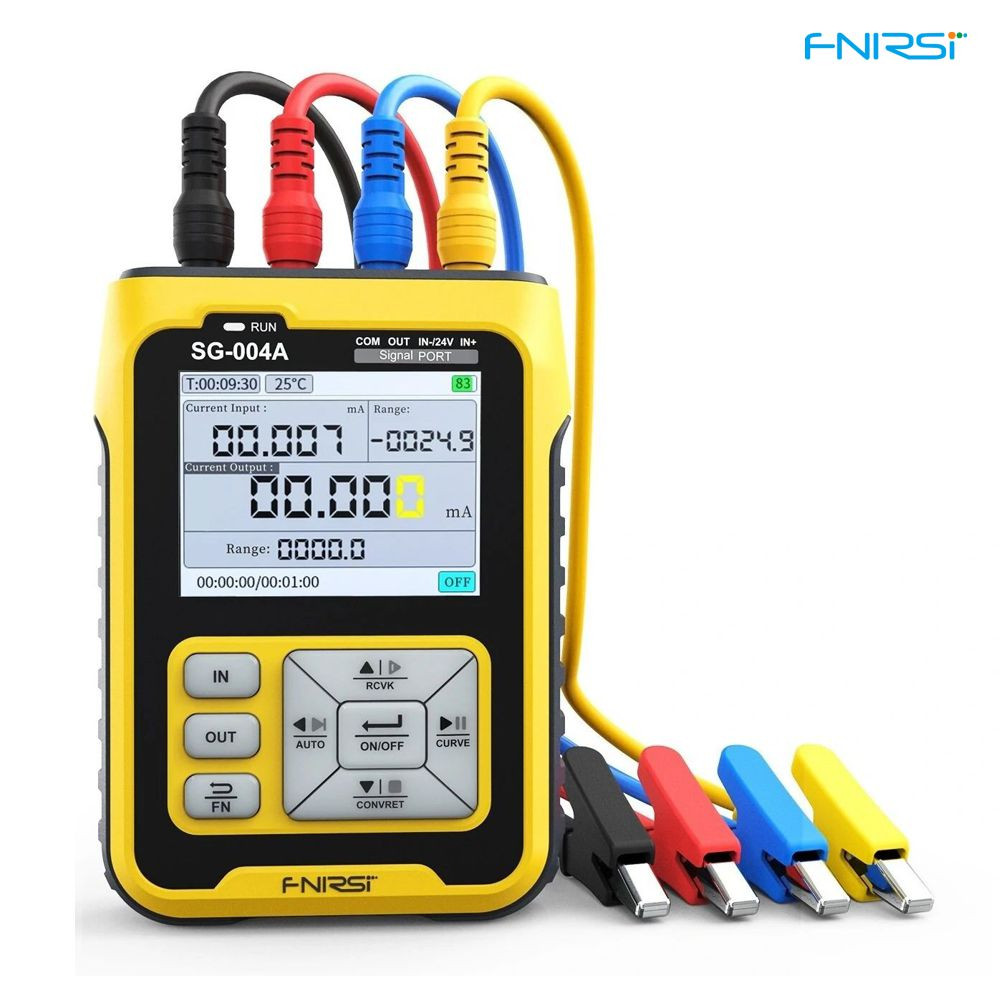

FNIRSI SG-004A - multifunction signal generator: 0-24 V, 4-20 mA analog voltage current thermocouple resistance process calibrator

Stock: Out of stock
FNIRSI SG-004A - multifunction signal generator: 0-24 V, 4-20 mA analog voltage current thermocouple resistance process calibrator
  • FNIRSI SG-004A - multifunction signal generator: 0-24 V, 4-20 mA analog voltage current thermocouple resistance process calibrator
69 970 Ft , (55 094 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h
Out of stock

FNIRSI SG-004A has a multiple signal output and input, including voltage, current and thermoelectric.

  •

    > Conversion Of Engineering Quantity Display: Signals are displayed as physical or engineering (ie pure quantity) values,The physical quantity corresponds linearly with the engineering quantity.For example: the current signal of 4~20mA corresponds to 0~100, that is, 4mA corresponds to 0, 12mA corresponds to 50, and 20mA corresponds to 100. This range can be modified by parameters.

    > Signal Conversion: The input signal is converted into an output signal, which can be converted between different physical quantities; for example: the input frequency signal is converted into a current signal, and the input range is 0-1000hz into 4-20mA.

    > Programming Output: It has the output function of automatically and continuously changing the size according to the setting parameters, and can choose three modes: monotonous rise, monotonous fall and cycle.

    > Real-time Curve: The change trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set.It can also automatically adjust the display curve within the range of the maximum and minimum values within a certain period of time.

    > History Record & Firmware Upgrade: Record and view a certain amount of historical data.Support USB emulated U disk for firmware upgrade.

    > Preset Value: 4 groups of commonly used signal values can be preset to facilitate quick adjustment of output.

    > Modbus Slave: SG-004A can communicate with configuration software or PLC via RS485, set the instrument.

    Signal Range Precision Resolution Impedance
     Current (mA) 0~24 mA ± (0.02%+0.003) 0.001 mA 100 Ω
     Voltage (V) 0~24 V ± (0.02%+0.003) 0.001 V 500K
     Passive (XMT) 0~24 mA ± (0.02%+0.003) 0.001 mA 100 Ω
     24V loop 0~24 mA ± (0.1%+0.005) 0.01 mA 100 Ω
     FRQ (Hz) 0~9999 Hz ±2% 5 digits 1MK
     mV -10~100 mV ± (0.03%+0.03) 0.01 mV 2K
     TC (TC-S) 0~1760℃ ±(0.2%+1) 1℃ 2K
     TC (TC-B) 0~1810℃ ±(0.5%+1) 1℃ 2K
     TC (TC-E) 0~990℃ ±(0.2%+1) 1℃ 2K
     TC (TC-K) 0~1320℃ ±(0.2%+1) 1℃ 2K
     TC (TC-R) 0~1760℃ ±(0.3%+1) 1℃ 2K
     TC (TC-J) 0~1190℃ ±(0.3%+1) 1℃ 2K
     TC (TC-T) 0~390℃ ±(0.2%+1) 1℃ 2K
     TC (TC-N) 0~1290℃ ±(0.2%+1) 1℃ 2K
     TC (WRe3/25) 0~2320℃ ±(0.2%+1) 1℃ 2K
     TC (WRe5/26) 0~2320℃ ±(0.2%+1) 1℃ 2K
     RES (ohm) 0~390 Ω ±(0.2%+1) 0.1Ω /
     Pt100 -200~650℃ ±(0.5%+1) 0.1℃ /
     Cu50 -20~150℃ ±(0.5%+1) 0.1℃ /

    The package:

    • 1xFNIRSI SG-004A
    • 4xTest Clip
    • 1xType-C charging cable
    • 1xEU charger
    • 1xUser manual
    • Package size: 15,5x14,5x9 cm
    • Package weight: 480 g



    pictures later

  • manufacturer
    FNIRSI
    garantie
    1 év
    Stock
    Out of stock
    Article No.
    fni-sg004a
    Weight
    480 g/pcs
