Huepar LR-5RG - laser recevier

Stock: In stock
Huepar LR-5RG - laser recevier
  • Huepar LR-5RG - laser recevier
  • Huepar LR-5RG - laser recevier
17 890 Ft , (14 087 Ft+VAT)
shipping fee
Favourable delivery charges.
postage >
Domestic- 24h; international- 24-72h

Huepar Outdoor Receiver for red and green laser lines LR 5RG (lasers with pulse mode only)

  • Specifications:

      • Pulse duration: 50 μs
      • PWM: 5:5
      • Frequency: 10KHz (Matched PWM and frequency, line lasers can work with LR-5RG laser receiver.)
      • Display two-sided LCD display
      • Two accuracy levels
      • Accuracy 1: ±2 mm
      • Accuracy 2: ±3 mm
      • Laser reception window: 15x50 mm
      • Working distance: 50 m
      • Operating time: 20 hours
      • Auto power off (with No Signal Detected) 10 mins
      • Power source: 2*AA Dry Battery
      • Operating temperature range: -10℃ to + 50℃
      • Storage temperature range: -25℃ to + 70℃
      • Dimensions: 140x67x27 mm
      • Weight: 140 g


    ️⭐【HUEPAR DEDICATED RECEIVER】- Huepar LR-5RG receiver can ONLY use with Huepar Line Laser Level. Please note can NOT be used for Rotary Laser Level. Recommended for use in accompanied with Huepar 901CG/902CG, BOX-1G/R, 8211G, 621CG/R, 622CG/R, 602CG/R, 603CG/R, GF360G/R Laser Level. Can also use with Tacklife SC-L03 / SC-L04 Laser Level.
    ⭐【AVAILABLE FOR RED AND GREEN PULSE LASER】- Turn on the Pulse Mode of the Laser Level, then Huepar LR-5RG laser receiver allows detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200 feet.

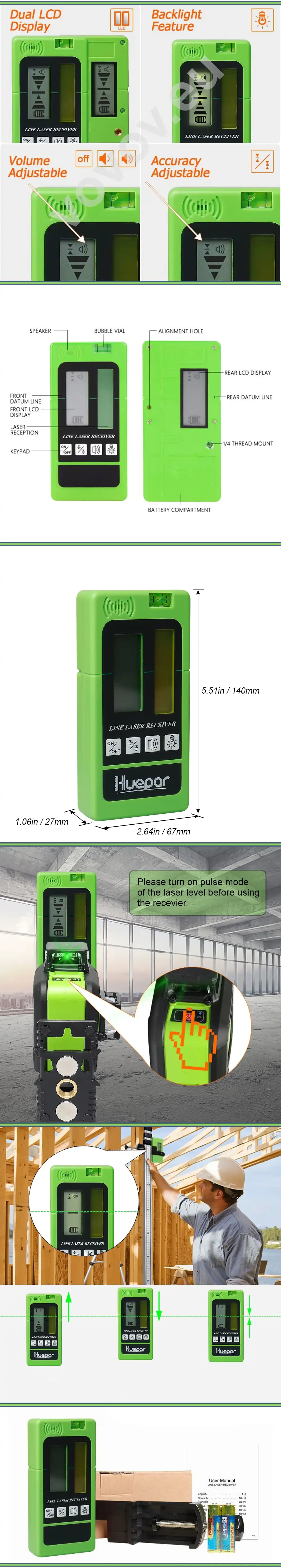

    ⭐【Large Reception Window & Dual LCD Display】- Large reception window of 2 inches and optical and acoustic signals help to locate the laser plane quickly and accurately. Dual LCD displays for easy visual readout on both sides of the receiver. LCD backlight provides a clear look even in low light conditions. Adjust the height until the horizontal datum line and the arrow disappear on the LCD display.
    ⭐【PRECISE OPTICAL AND ACOUSTIC SIGNALS】- This laser receiver features a user-friendly interface and is smart in its simple design. Optical and acoustic signals help to locate the laser plane quickly and accurately. The LED indicator provides a clear and accurate signal. Beep sounds will remind you when you find the target.
    ⭐【LONG BATTERY LIFE AND CLAMP HOLDER】- The receiver comes with 2 x AA battery, providing you with about 20 working hours. There is also an automatic shut-off feature that power down the device after about 10 minutes of being idle to extend battery life. The attached heavy-duty clamp makes it easy to mount the detector to a rod or other target point.

    Items in the package:

    • 1*Huepar LR-5RG Laser Detector
    • 1*Heavy-duty clamp
    • 2*AA Dry Battery
    • size: 19x8x8 cm
    • weight: 0,34 kg


  • manufacturer
    suitable lasers
    red & green line lasers (with pulse mode)
    10 kHz
    pulse duration
    50 μs
    front/back LCD display
    two levels: level1: ±2 mm; level2: ±3 mm
    reception window
    15x50 mm
    working distance
    50 m
    operating time
    20 h
    auto power off
    10 min
    power source
    2xAA battery
    working temperature (°C)
    -10℃ ˘- +50℃
    storage temperature (°C)
    -25℃ - +70℃
    dimensions (mm)
    weight (g)
