Product details

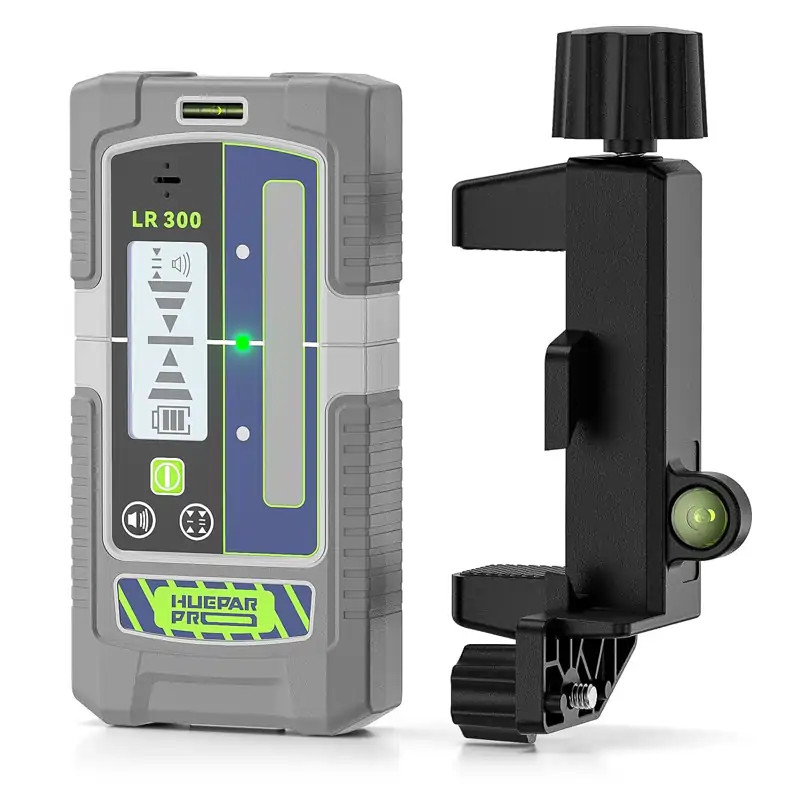

Huepar Pro LR300 - laser recevier
Receiver unit not compatible with rotating laser levels. Long detection range. For line lasers that operate in pulse mode only.
-
Specifications:
- Pulse duration: 50 μs
- PWM: 5:5
- Frequency: 10 kHz
-
Display: front LCD panel, front and rear LEDs
-
2 adjustable accuracy levels
- Accuracy 1: ±2 mm / 10 m
- Accuracy 2: ±3 mm / 10 m -
Audible signal: off/low/high
-
Laser sensor window: 7x75 mm
-
Magnets on the side and top of the device
-
Operating range: >70 m*
-
Power source: 2xAA batteries
-
Operating time: 20 hours
-
Auto-off: 30 minutes
-
IP rating: IP65
-
Operating temperature range: -10°C to +50°C
-
Storage temperature range: -20°C to +70°C
-
Dimensions: 160x80x28 mm
-
Weight with batteries: 252 g
* Direct sunlight on the sensor drastically reduces the detection range; shade it if necessary.

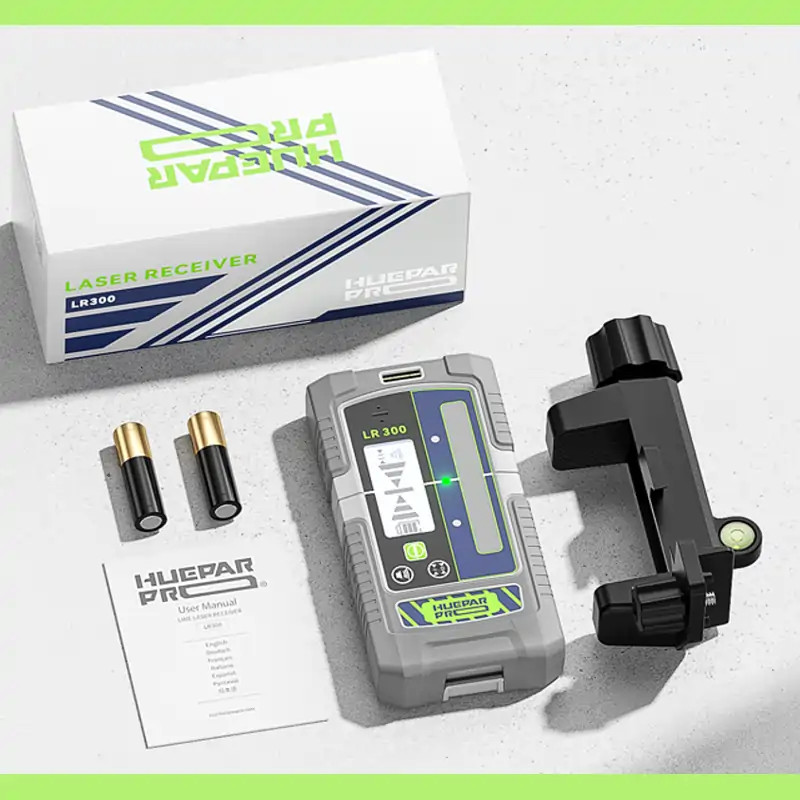

Package contents:
- Cardboard box
- LR300 detector
- 2 AA batteries
- Mounting bracket
- Instructions
- Package weight: 490 g
- Package dimensions: 21x9x9 cm
-
manufacturer Hueparsuitable lasers red & green line lasers (with pulse mode)frequvency 10 kHzpulse duration 50 μsPWM 5:5display front LCD display; front/back LEDaccuracy two levels: level1: ±2 mm; level2: ±3 mmreception window 7x75 mmbubble √magnets √working distance >70 moperating time 20 hbeep quiet/loud/offauto power off 30 minpower source 2xAA batteryworking temperature (°C) -10℃ ˘- +50℃storage temperature (°C) -20℃ - +70℃dimensions (mm) 160x80x28weight (g) 252garantie 2 yearsInventory VANItem number hue-lr300Status NEWWeight 400 g/pcs
