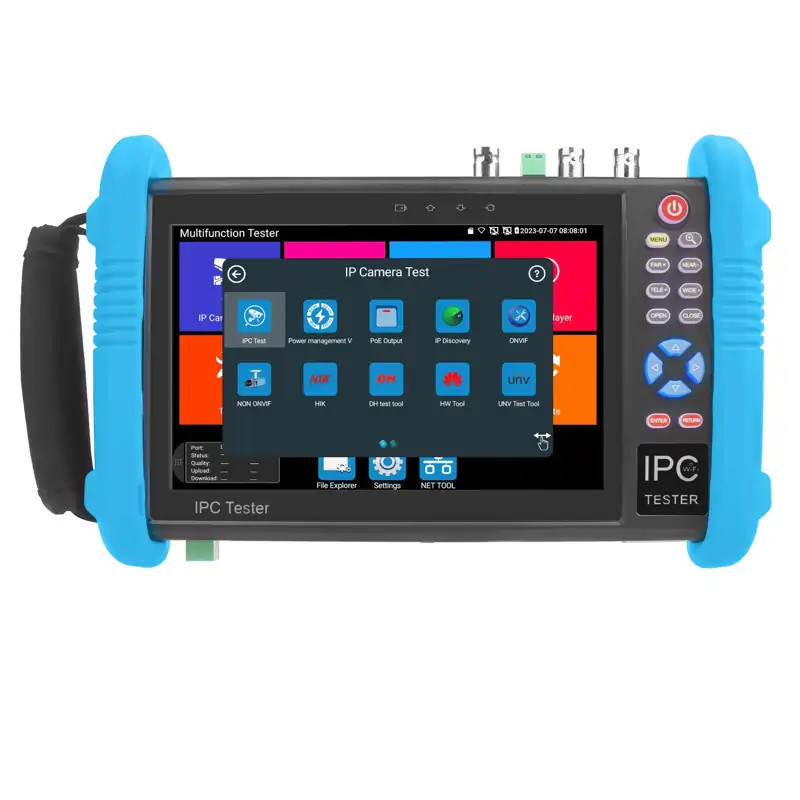

Noyafa NF-IPC716ADHS PRO - multifunctional CCTV tester
Multifunctional CCTV monitor tester, compared to the basic model of the updated series (marked PRO), it offers numerous additional features. For comprehensive testing of security systems and camera systems (HD and analog).
- 7-inch IPS touch screen, 1280*800 resolution.
- 8MP CVI / TVI / AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*.
- H.265/H.264, 4K video display via mainstream.
- Dahua, Hikvision, Axis etc. ONVIF camera test.
- Built-in WIFI, create WIFI hotspot.
- HDMI input & output, support 1080p.
- DC12V 3A, DC48V PoE power output, max power 25.5W.
- Rapid ONVIF, auto view video and create a testing report.
- UTP cable tester/RJ45 cable TDR test, cable quality test.
- Tester Play: Tester, mobile phone, and PC display at the same time.
-
The device was originally manufactured by Wanglu Technology Co. Ltd., one of the largest manufacturers in the segment. The company's products are mainly distributed by larger distributors under their own brand names. Noyafa, a network device manufacturer, has also added it to its product range as it fits their profile. The original manufacturer's designation for the device is IPC-9800ADHS Pro.
Model Noyafa NF-IPC716ADHS PRO Optional features of the device series: included not included CPU/RAM/ROM 4-core 2.0 GHz /1GB (DDR) /8GB (EMMC) Operating system Android 11.0 Display 7 inch IPS touch screen, 1280*800 resolution, Backlit buttons CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level measurement PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable IP camera test
Max 8K 32MPIP Discovery/ONVIF/IPC test /RTSP play /Client APK Rapid Video, Auto view the video, create testing report Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters Dahua test tool, Dahua camera test, modify the user name, password and IP parameters IP& CVBS test IP& CVBS test at the same time, converter test from analog to digital with dual test window Coaxial HD test 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio 8MP CVI camera test, 3840 x 2160P 12.5F/15F, UTC control/call OSD menu 8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu 8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu HDMI input 1 channel HDMI input, support 4K 3840x2160P 30fps HDMI output 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output have 2 output modes, please view details) VGA input 1 channel VGA input, support 1920x1080P 60fps Zoom Image 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back Analog Video out color bar generator: Output one channel PAL/NTSC color bar video signal for testing monitor or video cable Power output USB DC5V/2A power output, as a power bank DC12V/3A power output, supply temporarily power for the camera DC24V/2A power output, supply temporarily power for the speed dome camera Standard PoE power output, DC48 V, max power 25.5 W Cable test Cable tracer (Wire Finder): Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables. Support AC voltage detector. voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE UTP cable test：Test UTP cable connection status and display on the screen. Read the number on the screen RJ45 TDR cable test：Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180 m. Digital Multimeter (DMM) DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF, the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester's multimeter can continuity testing. Automatically adjust 0. Optical power meter (OPM) Wavelength: 1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range, -70 to +10 dBm, Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃)
Display resolution: Linear display 0.1%, logarithmic display 0.01dBm
Connector: Active FC/PCVisual fault locator (VFL) 10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multimode and single mode fiber’s bending and breakage, test range 10 km, Connector: Active FC/PC TDR cable test (hardware support) Measurable cable type: metal cable, include BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1,200 m Video level test Analog video level meter, peak video signal level, SYNC signal level Network interface RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive Network test Trace route, Link monitor, DHCP server, port flashing, Ping test Wi-Fi Built in WIFI, 150 Mbit/s, 2.4GHz Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal Power management View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. Drop-down menu You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface TesterPlay screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) Power supply DC 12 V / 2A Battery Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh Rechargeable After charging 3 to 4 hours, normal working time 15 hours Operation setting OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc. Auto off 1 to 30 mins Working Temperature -10℃ to +50℃ Working Humidity 30% to 90% Dimension/Weight Tester: 240x135x35 mm / 1050 g The package Packing list tester, tool bag, safety cord, audio test cable, BNC cable, RS485 control cable, charger, power output cable, test box, 8GB SD card, manual Dimension/Weight 33x29x10 cm; 2.35 kg
-
manufacturer Noyafagarantie 2 yearsStock In stockArticle No. noy-ipc716adhs-pStatus NEWWeight 2.35 kg/pcs
