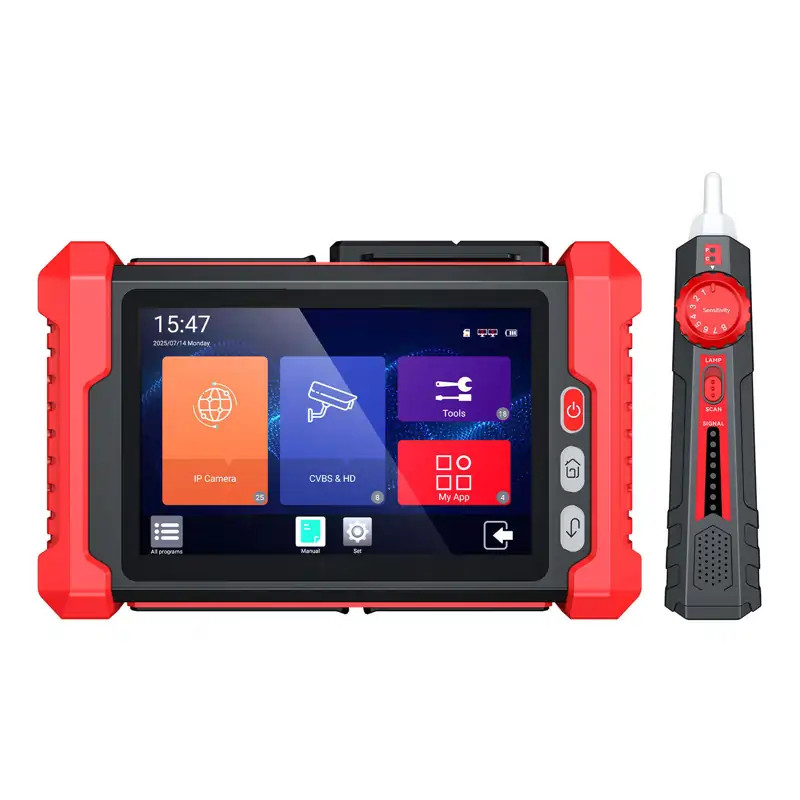

Noyafa NF-IPC728HSO - multifunctional CCTV tester

> 8" Full-HD IPS Touchscreen. 1920×1200 resolution delivers crystal-clear image quality for real-time IP and analog camera monitoring. Wide viewing angles and vivid colors ensure clarity even in outdoor environments or under direct sunlight.

> Dual Gigabit Ethernet Ports for Higher Efficiency. The camera can be connected to either port for testing, and the network status of the port is displayed in real-time.
It passes through network data between the camera and NVR, with one end connected to the camera and the other to the recorder, without needing to disconnect.
Monitor NVR network traffic online – high traffic may lead to packet loss, video lag, and other issues.

> Smart IPC Tester with AI Engineering Assistant. Combines advanced technology and intelligent automation to streamline the setup and management of security camera systems.
It monitors real-time camera statuses, including power supply, discovery, activation, image quality, and link status, while automatically detecting devices, scanning IP addresses, and managing camera settings, simplifying camera configuration and making it ideal for large-scale CCTV installations and troubleshooting tasks.

> 8K/32MP Resolution Support, Real-time Viewing of UHD Cameras. Supports true 8K/32MP, 4K/12MP, H.265+, H.265, H.264, MPEG4 mainstream decoding hardware, for real-time viewing.
Automatically recognizes TVI, CVI, AHD, SDI, and CVBS analog cameras for real-time video display, image zoom and PTZ control for precise adjustments.

> Rapid ONVIF & IP Discovery. One-click ONVIF adaptation enables quick automatic discovery of 99% IP cameras, significantly speeding up installation and troubleshooting. Instant IP camera setup and configuration, including video snapshot, recording, and playback.

> PoE and Power Output for Testing. PoE support for testing and powering IP cameras, ensuring that cameras receive adequate voltage during installation. DC12V/24V/48V power outputs to power cameras on-site without the need for external power sources.

> Advanced Network Diagnostic Tools. Perform network scanning, ping tests, and bandwidth analysis directly from the device for quick network diagnosis.
- Wi-Fi Analysis & Link Test: Check wireless signal strength and link quality for wireless cameras and AP placement.
- Ping / DHCP / IP Tools: Full network troubleshooting toolkit to validate IP leases, connectivity and latency on the spot.

> Optical Power Meter (OPM) & VFL. OPM (optional) for testing fiber optic signals and measuring optical power - critical for hybrid cable networks. VFL (Visual Fault Locator) for pinpointing fiber optic cable faults using visible red light.

> Cable Testing & Tracking. Built-in cable tracking function supports UTP, coaxial, and PoE cables, allowing users to detect cable locations and identify faults even in live systems. Network cable test provides a complete wire map, locating faults, incorrect wiring, and potential connection issues.

> RJ45 Cable TDR (2–195 m). Measure cable length, attenuation and reflectivity to find shorts, opens or poor quality runs onsite.

> HDMI Input and HDMI Output. Display camera feeds on external monitors or use monitor as input for recording and playback verification.

> Versatile and Durable for Field Work. Rugged design and 8-10 hour battery life make it ideal for field engineers, network installers, and security professionals. Features a portable, all-in-one solution for on-site installation, testing, and troubleshooting, reducing the need for multiple tools.
