Product details

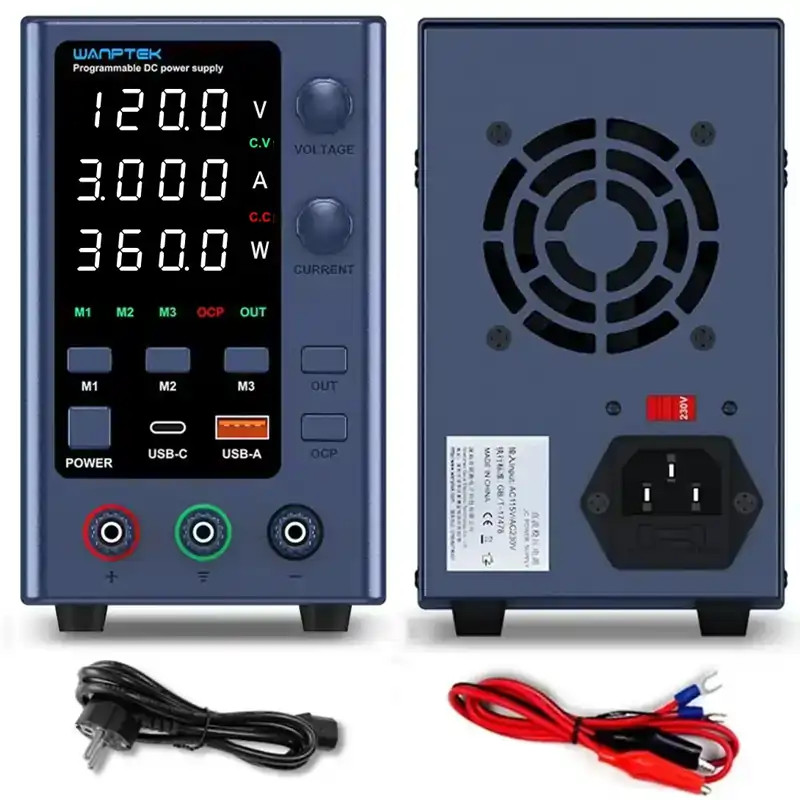

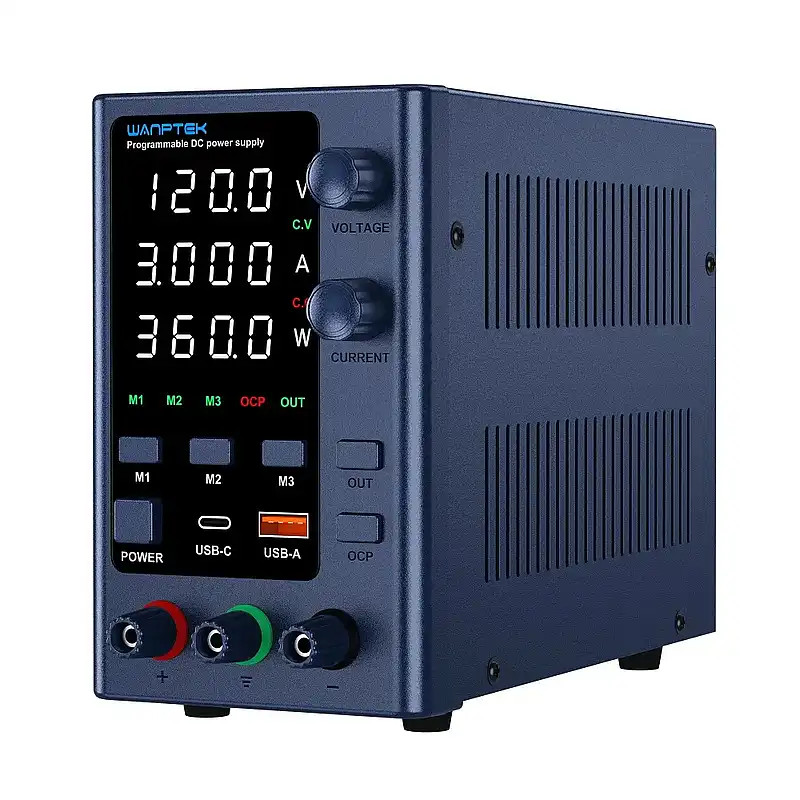

WANPTEK EPS1203 - programmable laboratory power supply: 120 V, 3 A, 360 W, 4 digits
Programmable DC laboratory power supply: 120 V, 3 A, 360 W, USB fast charging, 4-digit display.
General features of the WANPTEK EPS series power supplies: Three-line, four-digit display, programmable switches, simultaneous display of voltage, current, and power. The output voltage and output current values can be continuously preset. The USB fast-charging function (2 outputs) supports multiple fast-charging protocols. OVP and OCP short-circuit protection circuits. Good stability and ripple coefficient, compact size, and an aesthetically pleasing design.
-
Model EPS3205 EPS3210 EPS6205 EPS1203 EPS1602 Output Power 160 W 320 W 310 W 360 W 320 W Output voltage 0~32 V 0~32 V 0~62 V 0~120 V 0~160 V Output current 0~5 A 0~10 A 0~5 A 0~3 A 0~2 A Fuse 2 A 3 A 3 A 3 A 3 A Auxiliary functions USB-A, Type-C fast charge, output on and off, data storage, USB host computer communication (Optional) Protection mode OVP over voltage protection, OCP over current protection, over temperature protection, short circuit alarm stop output. Working environment Input voltage AC 230 V / 115 V ±10%；50 Hz / 60 Hz Working temperature 0℃～40℃; relative humidity:<80%RH Storage temperature -10℃～70℃; relative humidity:<70% RH Constant voltage CV Voltage stability 0,1%±3 mV Load stability 0,1%±3 mV Ripple voltage ≤20 mVrms Adjust 0 to rated voltage continuously adjustable Constant current CC Current stability 0,1%±3 mA Load stability 0,2%±3 mA Ripple current ≤5 mArms Adjust 0 to rated current continuously adjustable Display Type 0.4 inch white light four-digit digital tube three groups display Display accuracy 0.5% ±digits Display resolution: 0,01 V/ 0,1 V; 0,001 A / 0,01 A Size, weight, attachments Product size 190x90x145 mm Product weight 1.15 kg Packing size 270x135x195 mm Gross weight 1.5 kg Attchments power cord, instructions, test line
-
manufacturer WANPTEKgarantie 2 yearsInventory NONEItem number wan-eps1203Weight 1.5 kg/pcs
