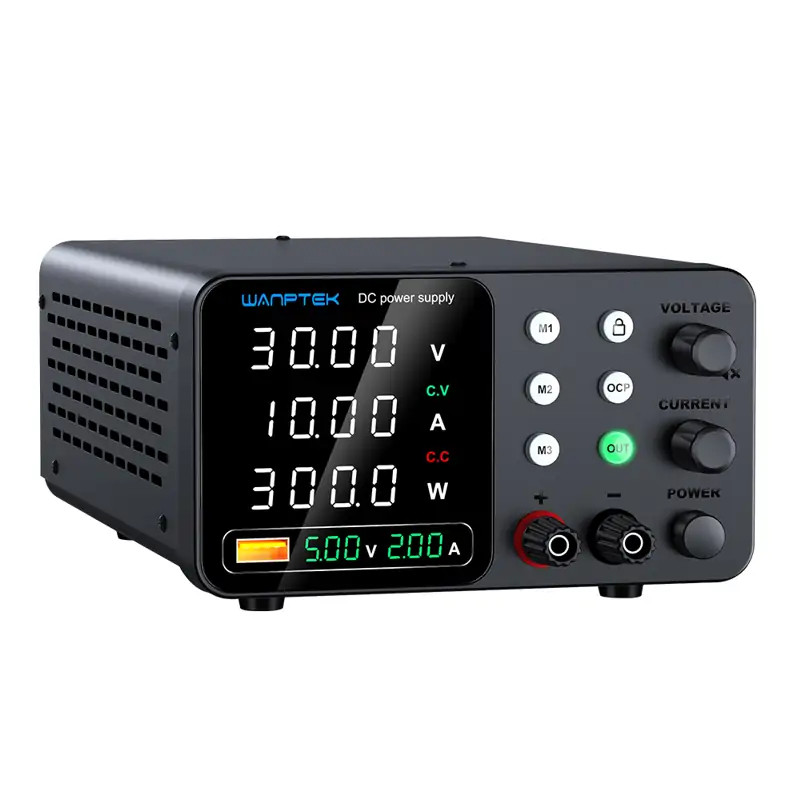

WANPTEK TPS-C3010 - laboratory power supply: 30 V, 10 A, 300 W, 4 digits

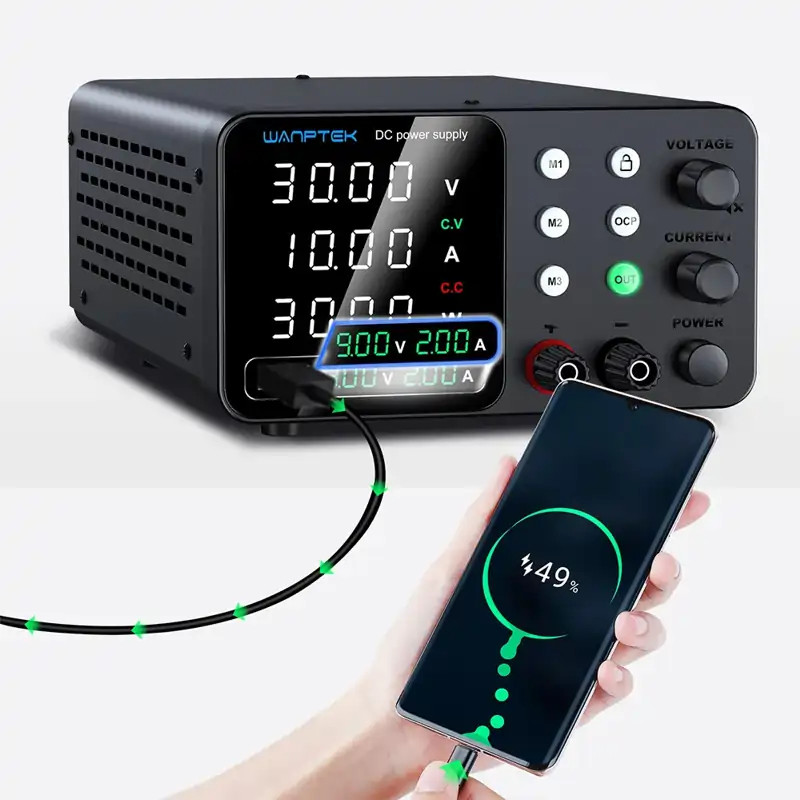

DC lab power supply: 30 V, 10 A, 300 W, USB fast charge, 4-digit display.
TPS-C series products are five-window two-color digital display adjustable DC regulated power supply, USB fast charging output with voltage and current display function, three sets of data storage function, can display voltage, current, power at the same time. The products are widely used in mobile phones, computers, electrical appliance maintenance, battery charging, school teaching, experimental testing and production line use. The output voltage and output current can be continuously adjusted between 0 and nominal using the coded potentiometer, and the set value can be displayed in advance for easy use and adjustment. This unit has a USB fast charging output with display function and supports a variety of fast charging protocols. It has perfect OVP and OCP short-circuit protection circuits, and the stability and ripple coefficient of the power supply are very good. Its small size, light weight, beautiful design, easy operation, full load can work for a long time, and is deeply loved by users.
-
Model TPS305 TPS3010 TPS605 TPS1203 TPS1602 Output Power 150 W 300 W 300 W 360 W 320 W Output voltage 0~30 V 0~30 V 0~60 V 0~120 V 0~160 V Output current 0~5 A 0~10 A 0~5 A 0~3 A 0~2 A Auxiliary functions USB-A /Type-C fast charge, output on and off Protection mode OCP overcurrent protection, over temperature protection, short circuit alarm stop output. Working environment Input voltage AC 230 V / 115 V ±10%；50 Hz / 60 Hz Working temperature 0℃～40℃; relative humidity:<80%RH Storage temperature -10℃～70℃; relative humidity:<70%RH Constant voltage CV Voltage stability 0.1%±3 mV Load stability 0.1%±3 mV Ripple voltage ≤20 mVrms Adjust 0 to rated voltage continuously adjustable Constant current CC Current stability 0.5%±3 mA Load stability 0.5%±3 mA Ripple current 0.1%±3 mA Recovery time 0.2%±3 mA Temperature coefficient ≤0,5 mArms Adjust 0 to rated current continuously adjustable Display Type 0.4 inch white light four-digit digital tube three groups display Display accuracy 0.5% ±digits Display resolution: 0.01 V; 0.001 A Size, weight, attachments Product size 210x145x80 mm Product weight 1.2 kg Packing size 300x200x130 mm Gross weight 1.5 kg Attachments power cord, instructions, test line
-
manufacturer WANPTEKgarantie 1 yearInventory VANItem number wan-tpsc3010Status NEWWeight 1.5 kg/pcs
