Product details

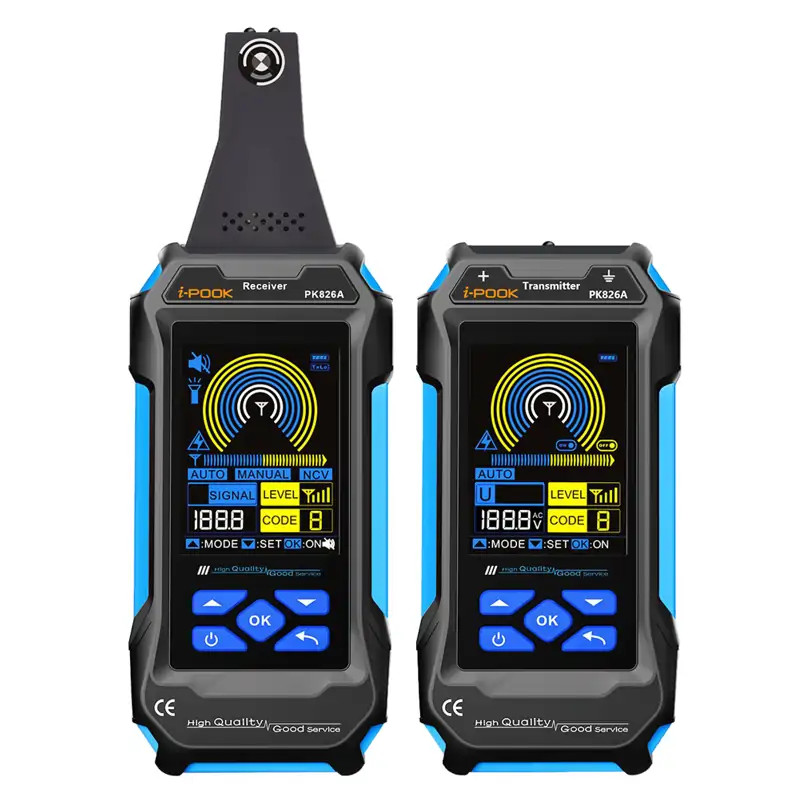

i-POOK PK826A - Underground wire locator
Cable and pipe locator: Tracing electrical wires, pipes in walls, underground.
Max. depth 2 m (depending on mode). Sensitivity adjustment, 6 transmission codes, manual and automatic mode. NCV, AC/DC voltage measurement, working lamp. Power supply: Li-ion battery.
-
Specifications PK826A PK826B Transmitter functions Output signal 124 kHz; CODE A/C/E/F/H/L; LEVEL 4 External voltage detection DC 10~400 V ± 2%
AC 10~400 V (50~400 Hz) ± 2%Display VA LCD; 320*240 Flashlight √ Power supply 1500 mAh Rechargeable lithium battery Fuse Cable Locator Fuse 2 A /500 V Multimeter, Network Cable Test Counts x (60000 count) DC Voltage x 6.0000 V ~ 1000 V (±0.5%+0.3) AC Voltage x 6.0000 V ~ 750 V (±0.8%+0.5) DC Current x 600.00 mA ~ 10 A (±1%+0.4) AC Current x 600.00 mA ~ 10 A (±1%+0.5) Resistance x 600.00 Q ~ 60 MQ (±1%+0.6) Capacitance x 6.0000 nF ~ 60 MF (±2%+0.6) Frequency x 6.0000 Hz ~6 MHZ (±1%+0.1) Continulty x < 10 Q Diode x √ Wiremap x short, cross, break DMM fuse x CE 5*20 mm; 10 A / 1000 V Receiver functions Tracing depth The tracing depth depends on medium and application Cable locator mode approx. 0~2 m (single-pole application)

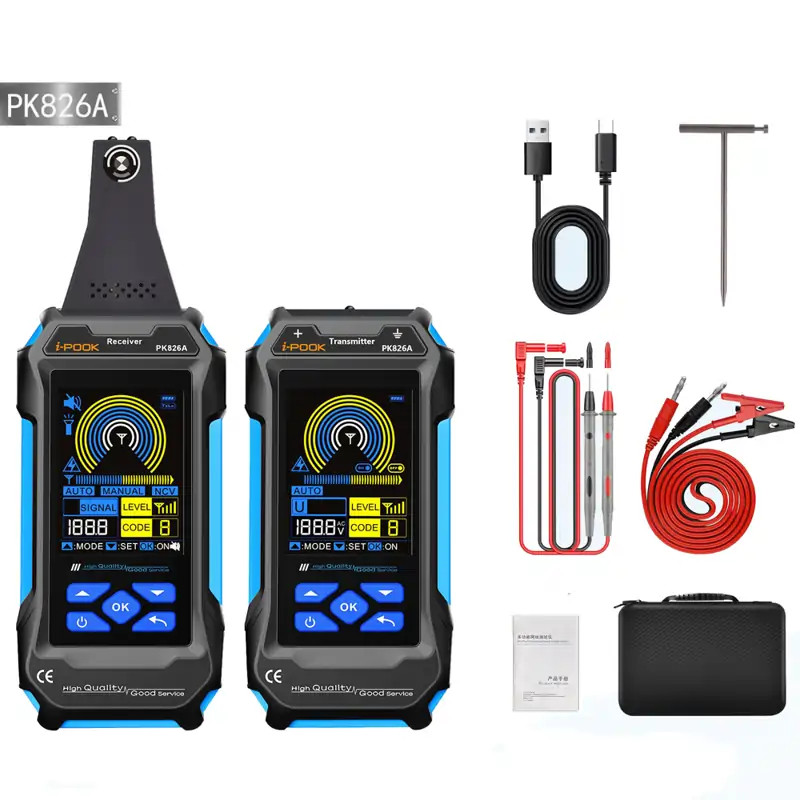

approx. 0~0.5 m (double-pole application)NCV approx. 0~0.4 meters Display Signal Code /Level /Strength Flashlight √ Power supply 1500 mAh rechargeable lithium battery Product Range (work) 0-40℃, max 80% RH (not condensation) Range (storage) -20~60℃, max 80% RH (not condensation) Charger requirements Charging requires a 5 V /2 A /10 W charger or above (not included) Size Transmitter:175*85*36 mm / Receiver:255*85*36 mm The package Package includes Color box /manual /tool kit /test lead /USB cable /Alligator clip cable /Grounding pile Color box /manual /tool kit /test lead /USB cable /alligator clip cable/grounding pile /RJ45 cable /remote adapter Package size 30*21*8 cm 30*21*8 cm Package weight ~1280 g ~1280 g
-
manufacturer i-POOKInventory VANItem number ipo-pk826aWeight 1.3 kg/pcs
