i-POOK PK836C - Underground wire locator with thermal camera & DMM

NEW
Inventory: VAN

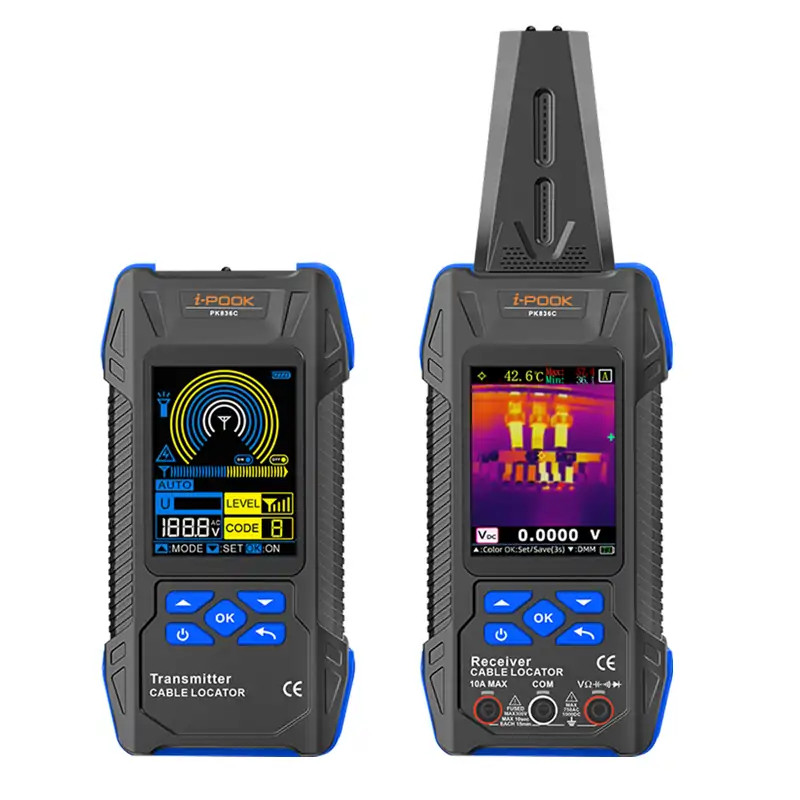

i-POOK PK836C - Underground wire locator with thermal camera & DMM
  • i-POOK PK836C - Underground wire locator with thermal camera & DMM
94 500 Ft , (74 409 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h
pcs Add to Cart Add to Cart

Multifunctional cable and pipe locator: Tracing electrical wires, pipes in walls, underground. Max. depth 2 m (depending on mode). Sensitivity adjustment, 6 transmission codes, manual and automatic mode, NCV. Power supply: Li-ion battery.

- Multimeter function: 60,000 digits, AC/DC voltage and AC/DC current measurement, continuity, diode test etc.
- Thermal camera: ISR 240*240 resolution, 25 Hz.

Details Data

  •

    Specifications
      PK836A PK836B PK836C
    Transmitter functions
     Output signal 124 kHz; CODE A/C/E/F/H/L; LEVEL 4
     External voltage detection DC 10~400 V ± 2%
    AC 10~400 V (50~400 Hz) ± 2%
     Display VA LCD: 3,2"; 320*240
     Flashlight √
     Power supply 1500 mAh Rechargeable lithium battery
     Fuse Cable Locator Fuse 2 A /500 V
    Multimeter
     Counts x (60000 count) (60000 count)
     DC Voltage x 6.0000 V ~ 1000 V (±0.5%+0.3) 6.0000 V ~ 1000 V (±0.5%+0.3)
     AC Voltage x 6.0000 V ~ 750 V (±0.8%+0.5) 6.0000 V ~ 750 V (±0.8%+0.5)
     DC Current x 600.00 mA ~ 10 A (±1%+0.4) 600.00 mA ~ 10 A (±1%+0.4)
     AC Current x 600.00 mA ~ 10 A (±1%+0.5) 600.00 mA ~ 10 A (±1%+0.5)
     Resistance x 600.00 Q ~ 60 MQ (±1%+0.6) 600.00 Q ~ 60 MQ (±1%+0.6)
     Capacitance x 6.0000 nF ~ 60 MF (±2%+0.6) 6.0000 nF ~ 60 MF (±2%+0.6)
     Frequency x 6.0000 Hz ~6 MHZ (±1%+0.1) 6.0000 Hz ~6 MHZ (±1%+0.1)
     Continulty x < 10 Q < 10 Q
     Diode x √ √
     DMM fuse x CE 5*20 mm;  10 A / 1000 V  CE 5*20 mm; 10 A / 1000 V
    Thermal Camera
     IR Resolution x x ISR 240x242
     Testing Distance x x 0.2~3 m (0.1m*0.1m)
     Measurement Principle x x 3-point temperature measurement (Center/Max/Min)
     Measurement Range x x -20~550°C (L: Low H:High A: Auto)
     FOV x x 50.0°x36.2°
     Photography Function x x Storage: 60 data sets
     Color Palettes x x 9
     Frame Rate x x 27 Hz
     Macro Lens x x

    Optional:

    Resolves 1 mm components
     Measurement Accuracy x x 2°C Or 2% (whichever is greater, When <5 °C, the error is+3 °C)
    (Detection distance 60cm; detection temperature: 23 ± 2 °C, no condensation)
    Receiver functions
     Tracing depth The tracing depth depends on medium and application
     Cable locator mode approx. 0~2 m (single-pole application)
    approx. 0~0.5 m (double-pole application)
     NCV approx. 0~0.4 meters
     Display Signal CODE /Level /Strength
     Flashlight √
     Power supply 1500 mAh Rechargeable lithium battery
    Product
     Range (work) 0-40℃, max 80% RH (not condens.)
     Range (storage) -20~60℃, max 80% RH (not condens.)
     Charger requirements Charging requires a 5 V /2 A /10 W charger or above (not included)
     Size Transmitter:175*85*36 mm / Receiver:255*85*36 mm
    The package

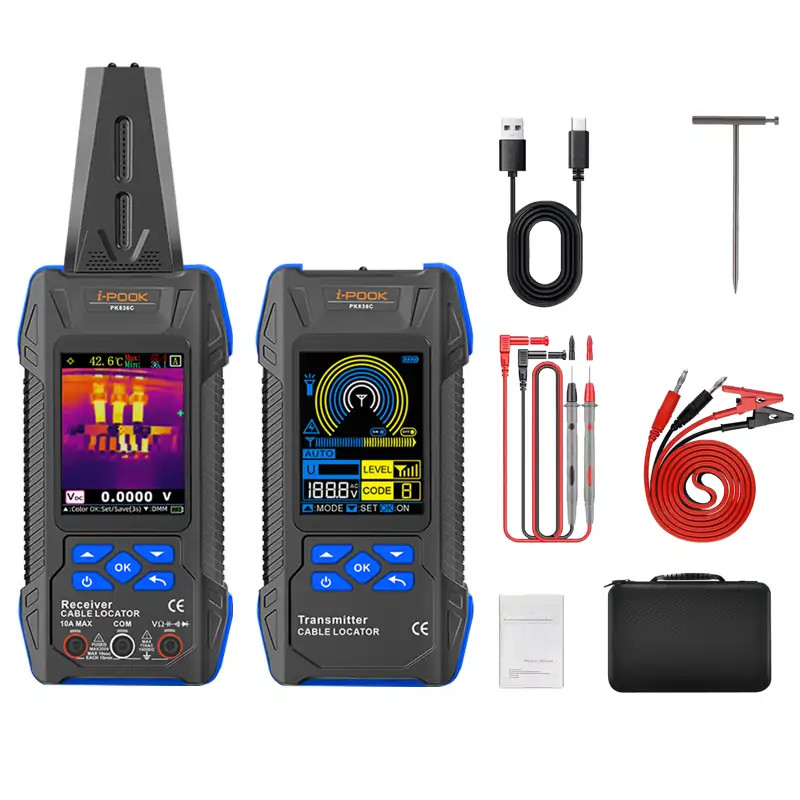

     Package includes Color box /manual /tool kit /test lead /USB cable /Alligator clip cable  /Grounding pile Color box /manual /tool kit /test lead /USB cable /Alligator clip cable  /Grounding pile Color box /manual /tool kit /test lead /USB cable /Alligator clip cable  /Grounding pile
     Package size 30*21*8 cm 30*21*8 cm 30*21*8 cm
     Package weight ~ 1380 g ~ 1380 g ~ 1380 g



  • manufacturer
    i-POOK
    Inventory
    VAN
    Item number
    ipo-pk836C
    Status
    NEW
    Weight
    1.4 kg/pcs
