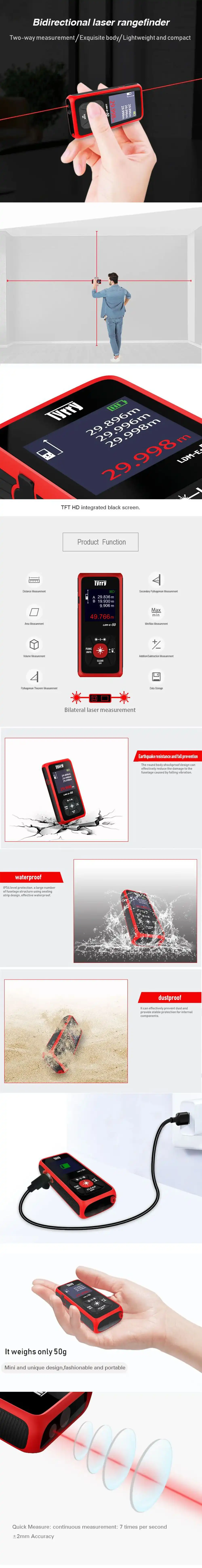

Dobiy LDM-E+50 - 50 m (30+20 m) bidirectional laser rangefinder

Stock: In stock
Dobiy LDM-E+50 - 50 m (30+20 m) bidirectional laser rangefinder
  • Dobiy LDM-E+50 - 50 m (30+20 m) bidirectional laser rangefinder
  • Dobiy LDM-E+50 - 50 m (30+20 m) bidirectional laser rangefinder
29 500 Ft , (23 228 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h

pcs Add to cart Add to cart

Two-way laser rangefinder. Compact, lightweight device with 30+20 m range. Ideal for surveying residential buildings. It is a product of the Dobiy company, which markets it under three of its own brand names: Dobiy, Farway, Tyrry, and under other brand names offered by distributors. Products in stock may also be designated accordingly.

Details Info

  • Specifications:

    • One-way range: 30 and 20 m*
    • Two-way range: 50 m*
    • Laser class: class 2 (IEC/EN60825-1/2014), <1mW output
    • Laser colour: red
    • Laser wavelength: 620-690 nm
    • Accuracy: 2 mm
    • Angle measurement
    • Max-min measurement (continuous measurement)
    • Area measurement
    • Volume measurement
    • Pythagorean measurement
    • Display: high-resolution colour display
    • Unit conversion
    • Power source: Li-ion battery (3.7 V; 500 mAh)
    • IP protection: IP54
    • Weight: 55 g
    • Size: 86x38x21 mm

      * depending on ambient light conditions



    Package contents:

    • distance meter
    • protective case
    • hand strap
    • charging cable
    • manual
    • package weight: 140 g
    • package size: 14x8x2,5 cm



  • manufacturer
    Dobiy
    unidirectional/bidirectional measurement
    bidirectional
    measuring range (m)
    50 m (30+20 m)
    laser color
    red
    laser class
    Class 2 (IEC/EN60825-1/2014), <1mW
    camera
    x
    bluetooth
    x
    display type
    colour, graphic
    rotating display
    √
    digital protractor
    √, one vertical
    digital bubble
    x
    laser wavelength (nm)
    620-690 nm
    accuracy (mm)
    ±3
    reference points
    2
    max/min measurement
    √
    distance measurement
    √
    area
    √
    painter mode
    x
    volume
    √
    trapezoid
    x
    trapezium calculation with angle
    x
    triangle area
    x
    circular area
    x
    cylinder volume
    x
    stake out
    x
    addition / subtraction
    √
    pythagorean measurements
    pythagorean measurements
    triangle operations with angle calculation
    triangle operations with angle calculationtriangle operations with angle calculation
    triangle operations with gyroscope
    triangle operations with gyroscope
    delayed measurement
    x
    memory
    50
    sound signal
    x
    calibration
    x
    unit switch
    √
    power source
    500 mAh Li-ion
    charging interface
    micro-USB
    tripod screw hole
    x
    storage temperature (°C)
    -10-+60
    working temperature (°C)
    0-+40
    laser off (s)
    30
    IP rating
    IP54
    device off (s)
    180
    product size (mm)
    86x38x20
    housing material
    plastic, rubber coating
    buttons
    rubber buttons
    weight (g)
    55
    the package
    device with built in battery, protective case, hand strap, USB cable, manual
    garantie
    1 year
    Stock
    In stock
    Article No.
    dob-ldmep50
    Weight
    150 g/pcs
