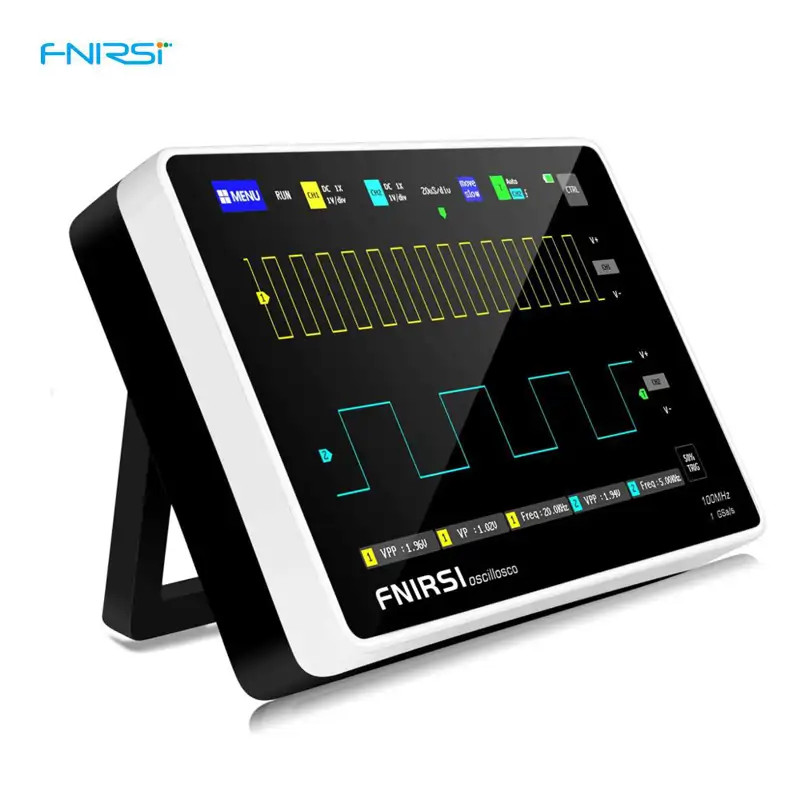

FNIRSI 1013D - tablet oscilloscope: 2 channels, 100 Mhz, 1 GSa/s sampling rate, 7" TFT LCD touch screen

Stock: In stock
FNIRSI 1013D - tablet oscilloscope: 2 channels, 100 Mhz, 1 GSa/s sampling rate, 7" TFT LCD touch screen
  • FNIRSI 1013D - tablet oscilloscope: 2 channels, 100 Mhz, 1 GSa/s sampling rate, 7" TFT LCD touch screen
69 500 Ft , (54 724 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h

FNIRSI-1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope launched by FNIRSI for the maintenance and R & D industry; this oscilloscope has a real-time sampling rate of 1 GSa/s and an analog bandwidth of 100MHz * 2. With complete trigger function (single/normal/automatic), it can be used freely for periodic analog signals or non-periodic digital signals; the built-in high-voltage protection module can tolerate a continuous voltage of up to 400 V.

  • > Professional Designed: FNIRSI oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope has a complete trigger function (single/normal/automatic), it can be used freely for both periodic analog signals and aperiodic digital signals.

    > Highly Performance: 7 inches, 800 * 480 resolution, bright colors and high contrast. Ultra-thin and easy to carry. Built-in high-voltage protection module,can tolerate a continuous voltage of up to 400V. 6000mAh high-performance lithium battery, can be used continuously for 4 hours after fully charged.

    > Easy to Operate: Equipped with efficient one-button automatic device. One-click waveform saving and screenshots. The built-in 1GB storage space can store up to 1000 screenshots 1000 sets of waveform data.Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

    > Easily Measuring: Capacitive screen touch & gesture operation, cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion.

    > Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal.



    FNIRSI 1013D specifications
     Channels 2
     Bandwidth 100 MHz
     Real-time sample rate 1 GS/s
     Storage Depth 240 KB
    Input
     Input coupling DC, AC
     Input impedance 1 Ω
     Probe attenuator 1 X, 10 X
     Highest Test Voltage 40 V (1 X), 400 V (10 X)
    Horizontal System
     Time base scale 50 s / div  - 10 ns / div
    Vertical System
     Time base scale 50 mV / div - 500 V / div
     Rise time < 3 ns
     Vertical resolution 8 bit
     Voltage accuracy ± 2%
     Frequency accuracy ± 0,01%
    Trigger System
     Trigger mode auto, normál, egyszeri
     Trigger type emelkedő/ eső
    Measuring System
     Automatic measurements VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Period
     Cursor measurements XY, Y trigger
    General Specifications
     Display color TFT display, 7 inches, 800 × 480 pixels
     Power built-in 6000 mAh lithium battery, up to 4 hours of continuous work, 5 hours of charging
     Interface USB (5 V / 2 A)
     Built-in memory 1 GB
     Waveform storage 1000 picture + 1000 waveform
     Dimensions 184 × 124 × 50 mm
     Net weight 650 g



    The Package:

    • 1 * FNIRSI 1013D oscilloscope
    • 2 * Matching 100MHz probe (1x and 10x)
    • 1 * USB cable
    • 1 x Charging adapter
    • 1 x User manual
    • Package size: 260*160*85 mm
    • Weight: 940 g
