FNIRSI FNB58 - USB tester: Bluetooth function, voltage, current, power tester, Fast Charge Detection, Trigger Capacity Measurement Ripple Measurement

Stock: In stock
FNIRSI FNB58 - USB tester: Bluetooth function, voltage, current, power tester, Fast Charge Detection, Trigger Capacity Measurement Ripple Measurement
25 390 Ft , (19 992 Ft+VAT)
shipping fee
Favourable delivery charges.
postage >
Domestic- 24h; international- 24-72h

FNIRSI FNB58 USB tester: 4-28 V, 7A LCD USB A&C voltage, current, power tester with Bluetooth, fast charge detection, trigger capacity ripple measurement, PD2.0/PD3.0, QC2.0/QC3.0.

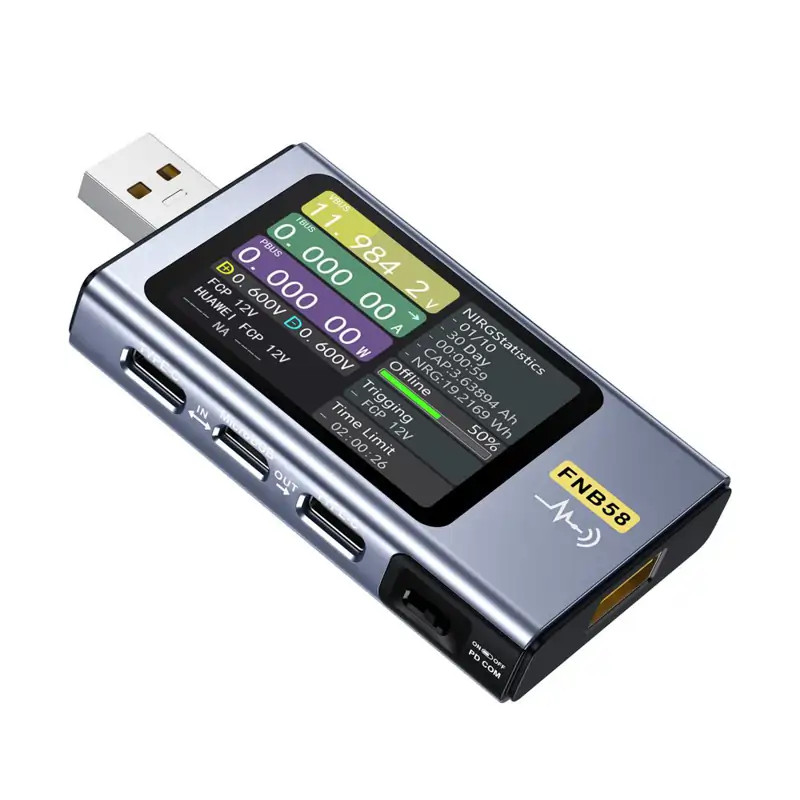

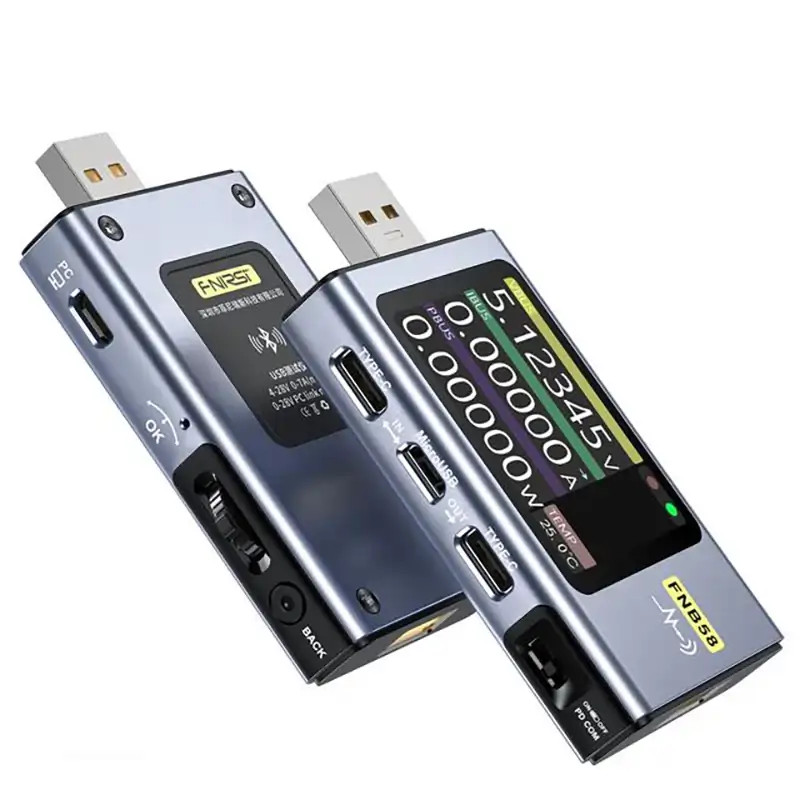

    > Updated Designed USB Tester: FNIRSI FNB58 USB tester has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It is a high-reliability, high-safety USB voltage and current detection meter and a mobile communication terminal fast charging trigger. Gravity sensor, automatically switch the display direction.
    > Multifunction USB Digital Tester: FNB58 uses external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks. FNB58 USB tester can monitor the voltage, current, power, resistance, capacity, temperature, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers.
    Fast Charge Protocol Trigger Detection: FNB58 supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring. MTK-PE automatic detection. Support QC2.O->PD2.0 protocol conversion.
    > Parameter Detection and Recording: The highest six-digit display of voltage, current and power, the highest resolution is 0.00001 (V/A/W). 10 sets of switchable capacity, power and time statistics. 1 set of voltage and current curve records, maximum support 9 hours. Support low-speed waveform (voltage, current, D+/D-) drawing, 2sps->100sps sampling rate. Support high-speed ripple (voltage, AC coupling)drawing, up to 4M sps sampling rate.
    > Other detection functions: FNB58 also has many functions that other USB testers do not have. The internal resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable.
    In order to respond to the environmental protection policy and reduce the waste and use of paper, FNB58 does not come with paper manuals. You can visit the official website of FNIRSI Technology on the box to download the electronic manuals. More content can also be downloaded from the official website, including subsequent product update firmware, host computer, APP, etc.

    FNIRSI USB tester specifications
    Type >> FNB48, FNB48P FNB58
     Monitor voltage  range 4~24 V 4~28 V
     resolution 0.00001 V
     accuracy ±(0.2‰+2)
     Monitor current  range 0~6.5 A 0~7 A
     resolution 0.00001 A
     accuracy ±(0.5‰+2)
     Monitor power  range 0~156 W 0~120 W
     resolution 0.00001 W
     accuracy ±(0.5‰+2)
     Load equivalent internal resistance  range 0~9999.9 Ω
     resolution 0.0001 Ω
     accuracy ±(0.5‰+2)
     D+/D- voltage  range 0~3.3 V
     resolution 0.001 V
     accuracy ±(1.0%+2)
     Equipment temperature  range ℃; ℉
     resolution 1℃; 1℉
     accuracy ±(1.2%+3); ±(1.2%+4)
     Capacity  range 0~9999.99 Ah
     resolution 0.00001 Ah
     Energy used  range 0~9999.99 Wh
     resolution 0.00001 Wh
     Cable resistance  range 0~9999.9 Ω
     resolution 0.0001 Ω
     Equipment running time  range 99d23h59min59s
     resolution 1 s
     Record time  range 99d23h59min59s
     resolution 1 s
     Interfaces USB-A, Micro-USB, Type-C
     Wired PC connection
     Bluetooth connectivity with android devices Bluetooth version only Bluetooth version only
     Firmware update
     Free software: windows and android
     Metal housing FNB48P version only
     Display 1.77" rotating color TFT LCD 2.0" rotating full color TFT LCD


    device weight: 45 g

    package weight: 85 g

    package size: 11,5x8,5x2 cm
