FNIRSI LPM-10A - Multifunctional Network Cable Tester

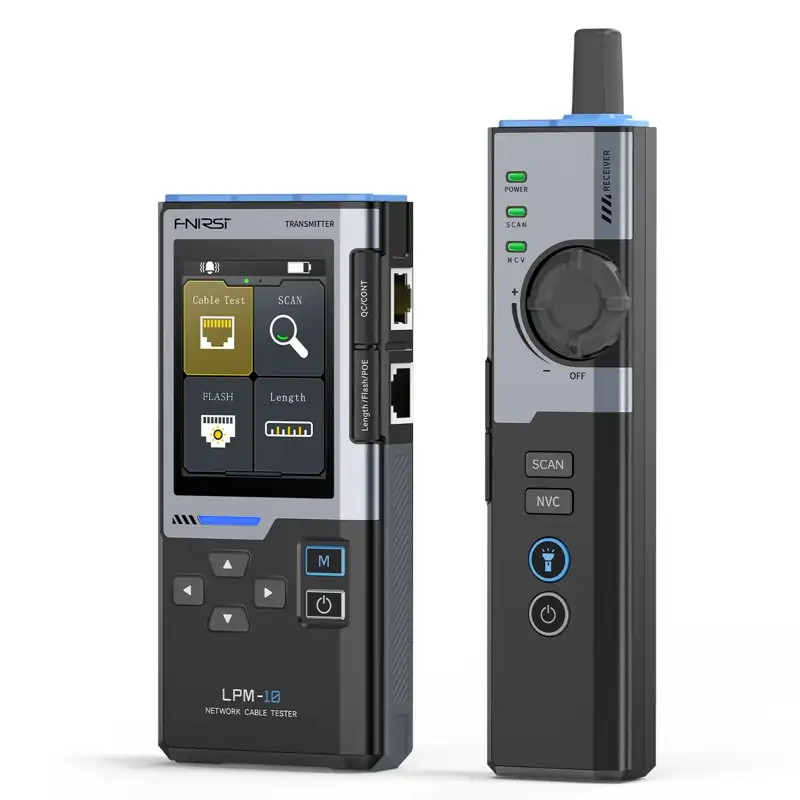

The FNIRSI LPM-10A is a smart multifunctional cable tracker and network tester with a 2.4-inch color screen. It supports cable tracing (normal/anti-interference), length and crimp tests, PoE and NCV detection, and port flashing. Featuring high accuracy, Type-C charging, and a 1500 mAh battery, it’s ideal for efficient network installation and troubleshooting.
-
Specifications Transmitter Parameters Function Description Product Model LPM-10A LPM-10B LPM-10C Network cable connection test Line interface: RJ45 √ Line √ Line sequence √ Error prompt √ Wire tracing test Normal wire tracing √ Anti-interference wire tracing √ Port flashing Full duplex, half duplex Automatic identification √ Auto-negotiation, non-auto-negotiation √ Network
cable rate10M /100M /1000M √ Duplex Mode (Full Duplex, Half Duplex) √ Length
test≤20 m +/-1.6 m,
20 m~2.4 m,

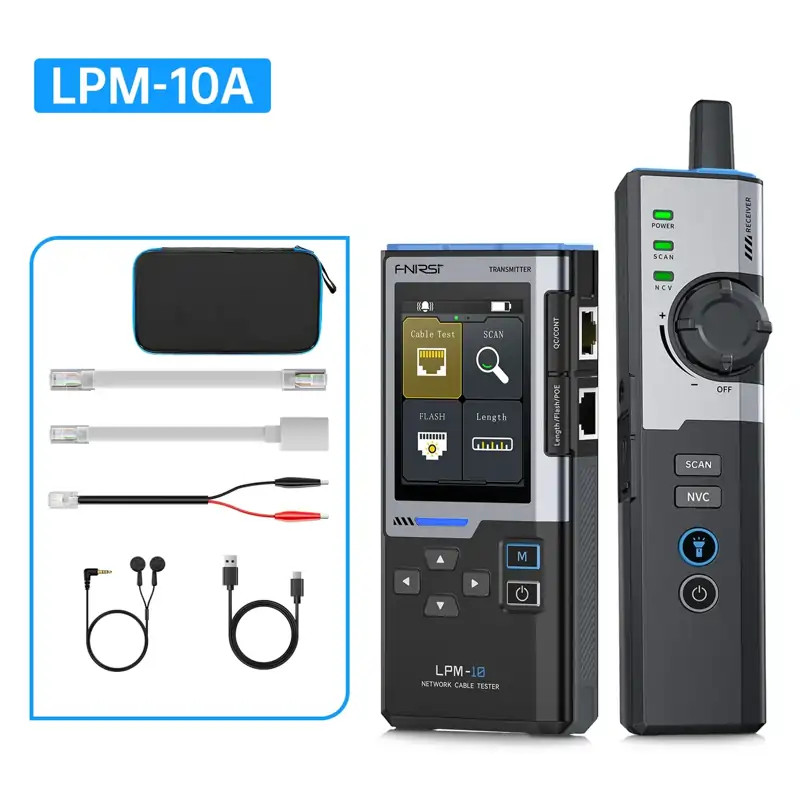

≥100 m+/-3.2 m√ POE test Standard and Non-standard Automatic identification √ end jumper/ middle jumper/ 8-pin √ Power Supply Mode √ Power Level √ QC test RJ45-8-core √ Red light function 10 mW x √ x Optical power Meter function 580 /1300 /1310 /1490 /1550 /1625 (Wavelength) x √ x PING test IP Connection Ping Test x x √ IP scan IP Scan x x √ Receiver parameters Sensitivity adjustment √ Wire tracing method Normal/anti-interference Line alignment √ NCV detection function √ Flashlight function √ Low voltage warning √ Headphone function √ General specifications Screen material 2.4-inch color screen Backlight Adjustable backlight brightness Firmware update √ Power supply TYPE-C (5V/1A) Battery 1500 mAh Language Chinese, English Product size ≈152×68×31mm ≈167×68×31mm ≈152×68×31mm Package size 22x13x5 cm package weight ~ 500 g Package contents 1. LPM-10A 2. RJ45 Network Cable 3. RJ11 Alligator Clip Test Cable 4. RJ45 to RJ11 Adapter Cable 5. Earpiece Cable 6. Type-C Charging Cable 7. Storage Bag
-
manufacturer FNIRSIInventory NONEItem number fni-lpm10a
