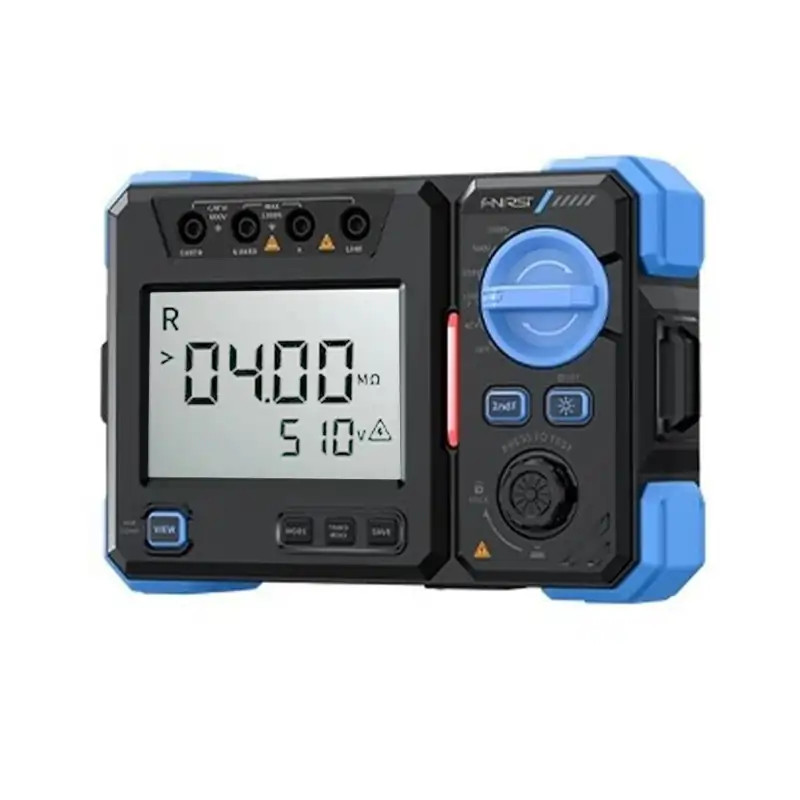

FNIRSI MRT-1050 - Insulation Resistance Tester 1000 V, 20 GΩ
Measuring device for measuring insulation resistance: DC 1000 V, AC 750 V; 0.1 MΩ - 20 GΩ.
-

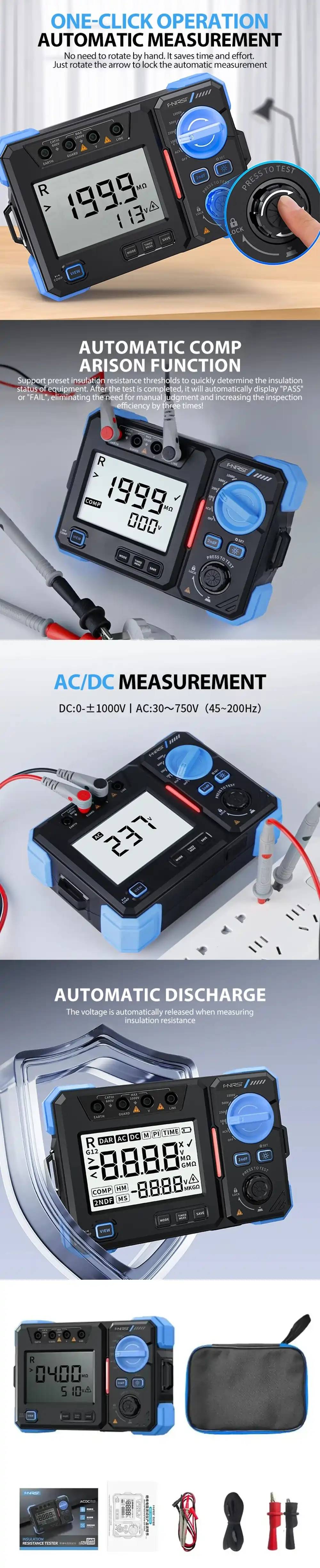

Features:
> Wide Voltage Testing Range: Capable of measuring both DC voltage up to 1000 V and AC voltage within 30–750 V, ensuring versatility for various electrical applications.
> High Insulation Resistance Accuracy: Provides precise measurements across multiple voltage settings (100 V, 250 V, 500 V, 1000 V), with resistance spanning from 0.1MΩ to an impressive 20 GΩ.
> Compact and Lightweight Design: Measuring 182 x 124 x 66 mm and weighing only 684 g, it is portable and suitable for on-the-go professionals.
> Dual Power Supply Options: Operates efficiently with either 8 AA batteries or DC 12 V input for flexible and uninterrupted usage.

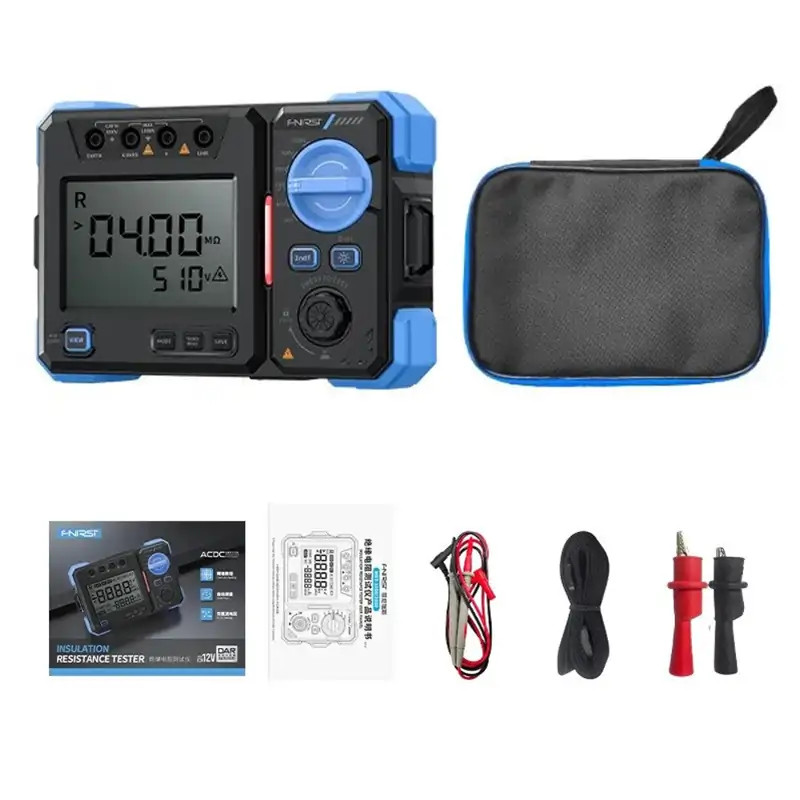

> User-Friendly Controls and Display: Features a clear digital screen and intuitive interface for straightforward operation and quick readings, enhancing usability.Insulation resistance measurement MRT-1050 MRT-2050 100-1000 V 250-2500 V Test voltage Measurement Range Accuracy 0-20% 100 V 0.1 MΩ-200 MΩ x 5%+3 250 V 0.1 MΩ-2 GΩ 0.1 MΩ-2 GΩ 5%+3 500 V 0.5 MΩ-5 GΩ 0.5 MΩ-5 GΩ 5%+3 1000 V 3 MΩ-20 GΩ 3 MΩ-20 GΩ 5%+3 2500 V x 5 MΩ-200 GΩ 5%+3 Other features DC voltage measurement 1000 V 2%+3 AC voltage measurement 750 V 2%+3 DAR/PI √ Timing measurement √ Numerical comparison √ Memory √ Backlight √ Low power indicator √ Auto off √ General Specifications Power supply 8 x AA dry batteries / DC 12 V Product size 182x124x56 mm Product weight 685 g The package instrument, storage bag, 8 x AA 1.5V dry batteries, instruction manual, test leads,nylon tape, alligator clips Package size 220*160*85 mm Package weight ~ 1 kg
-
manufacturer FNIRSIgarantie 2 yearsInventory VANItem number fni-mrt1050Weight 1 kg/pcs
