Product details

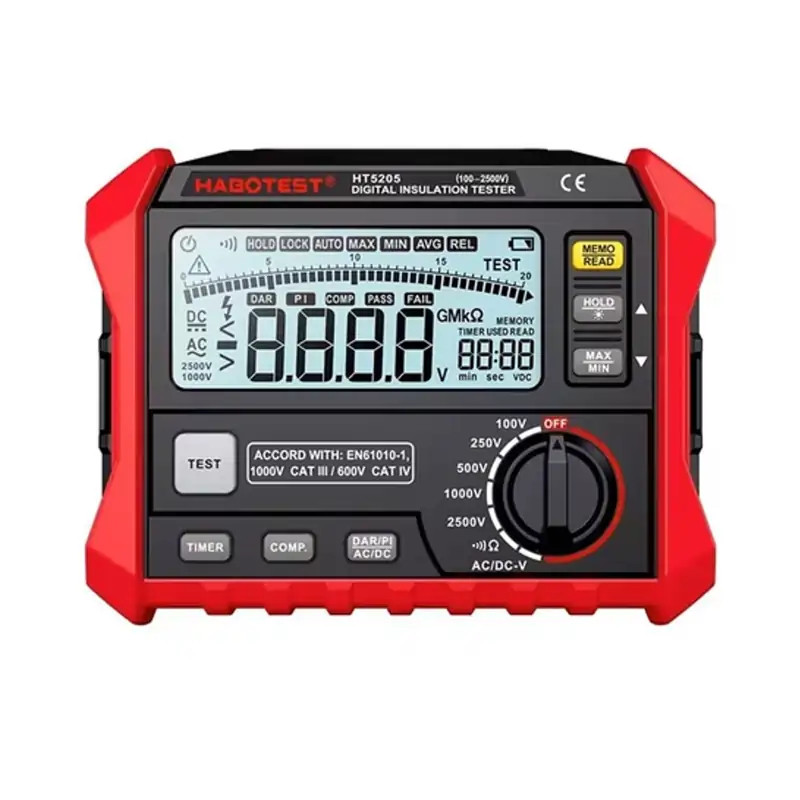

Habotest HT5205 - Insulation Resistance Tester 2500 V, 200 GΩ
Measuring device for measuring insulation resistance: 3 MΩ - 200 GΩ, voltage measurement: DC 1000 V, AC 750 V
-

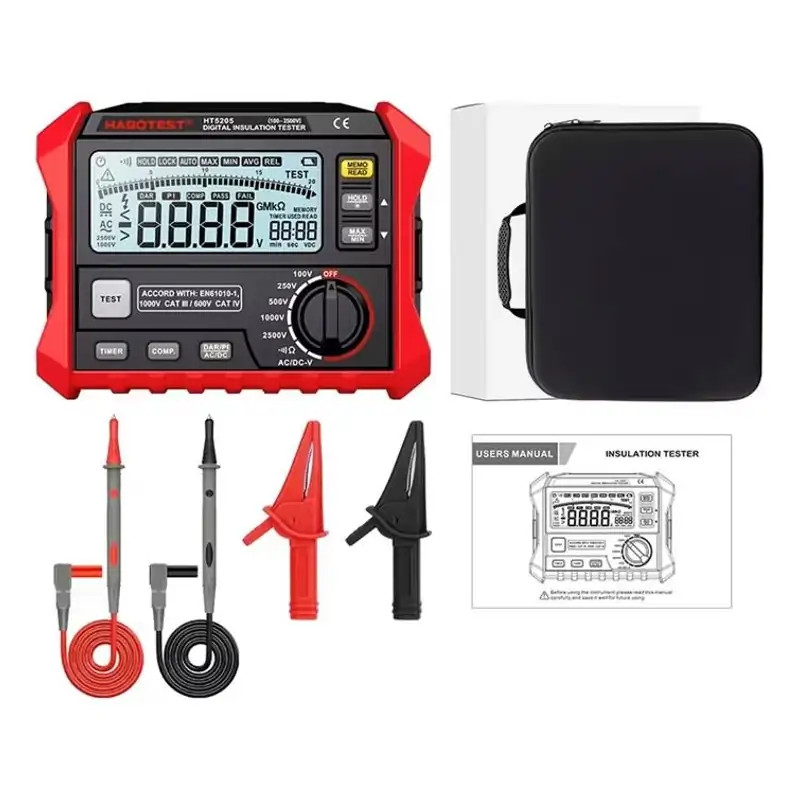

Insulation resistance measurement Range Resolution HT5203 HT5205 50 V 0-20.00 MΩ 0.01 MΩ ±3%+5 x 20.0-200.0 MΩ 0.1 MΩ 100 V 0-20.00 MΩ 0.01 MΩ ±3%+5 ±3%+5 20.0-200.0 MΩ 0.1 MΩ 0.200-1.000 MΩ 0.001 GΩ 250 V 0-20.00 MΩ 0.01 MΩ ±3%+5 ±3%+5 20.0-200.0 MΩ 0.1 MΩ 0.200-2.000 GΩ 0.001 GΩ 500 V 0-20.00 MΩ 0.01 MΩ ±3%+5 ±3%+5 20.0-200.0 MΩ 0.1 MΩ 0.200-2.000 GΩ 0.001 GΩ 2.00-20.00 GΩ 0.01 GΩ 1000 V 0-20.00 MΩ 0.01 MΩ ±3%+5 ±3%+5 20.0-200.0 MΩ 0.1 MΩ 0.200-2.000 GΩ 0.001 GΩ 2.00-20.00 GΩ 0.01 GΩ 20.0-100.0 GΩ 0.1 GΩ ±5%+5 ±5%+5 2500 V 0-20.00 MΩ 0.01 MΩ x ±3%+5 20.0-200 MΩ 0.1 MΩ 0.200-2.000 MΩ 0.001 GΩ 2.00-20.00 GΩ 0.01 GΩ 20.0-200.0 GΩ 0.1 GΩ ±8%+5 Other functions DC voltage measurement 1000 V 1%+5 AC voltage measurement 750 V 1%+5 Continuity √ DAR/PI √ Timing measurement √ Numerical comparison √ Data hold √ Beep √ Backlight √ Low power indicator √ Auto off √ Max/min measurement √ General specifications Power supply 8x1.5 V AA battery Weight 627 g Size 180x140x65 cm Security level IEC/EN 61010-1 1000 V CAT III, 600 V CAT IV The package tester, bag, detection pen, alligator clip, manual Package size 22x21x8 cm Package weight 1 kg
-
manufacturer Habotestgarantie 2 yearsInventory VANItem number hab-ht5205Weight 1 kg/pcs
