Habotest HT5910 - loop and RCD tester

Stock: In stock
Habotest HT5910 - loop and RCD tester
  • Habotest HT5910 - loop and RCD tester
  • Habotest HT5910 - loop and RCD tester
74 850 Ft , (58 937 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h

Loop Resistance; Frequency; Contact Voltage; Tripping Current Etc.

  •

    Specifications
      Range Accuracy Resolution
    Jump off time x1 IΔN 300ms (slow 500ms) ±3 ms 0.1 ms
    x5 IΔN 40ms (slow 150ms)
    Jump off current (0.2-1.1) IΔN ±0.1 IΔN 0.05 IΔN
    Contact voltage 0~9.9 V ±(10%+0.2V) 0.01V
    10.0~99.9 V 0.1V
    Alternating Voltage (UL-N, UL-L,UL-E) 0~440 V ±(3%+3V) 1 V
    Frequency DC, 45~65 Hz ±1 Hz 1 Hz
    Loop Resistance (RL) 0.1~2000 Ω ±(10%+0.2d) 0.1 Ω
    RL Current Test 0.5 IΔN ±(10%+10d) 0.05 IΔN
    Multiplying Power of Measuring Current x0.5, x1, x5
    Current Level (IΔN) 10mA, 30mA, 100mA. 300mA, 500mA
    Trigger Phase Angle 0°or 180°
    Other parameters
    Auto Power Off    √
    Display Back Light    √
    Data logging And recall 1000 groups
    Low Battery indication    √
    USB 2.0 Interface    √
    Storage temperature -20~70°C
    Working temperature 0~40°C
    Power Supply 8x1.5 V AA batteries
    Product Size 180x140x65 mm
    Product Weight 950 g (2.0lb)
    Category IEC/EN 61010-1 1000V CAT III, 600V CAT IV
    RCD test current selection table
    IΔN (mA) IΔx1/2 (mA) IΔx1 (mA) IΔx5 (mA) auto
    10 5 10 50 10
    30 15 30 150 30
    100 50 100 500 100
    300 150 300 1500 300
    500 250 500 --- 500

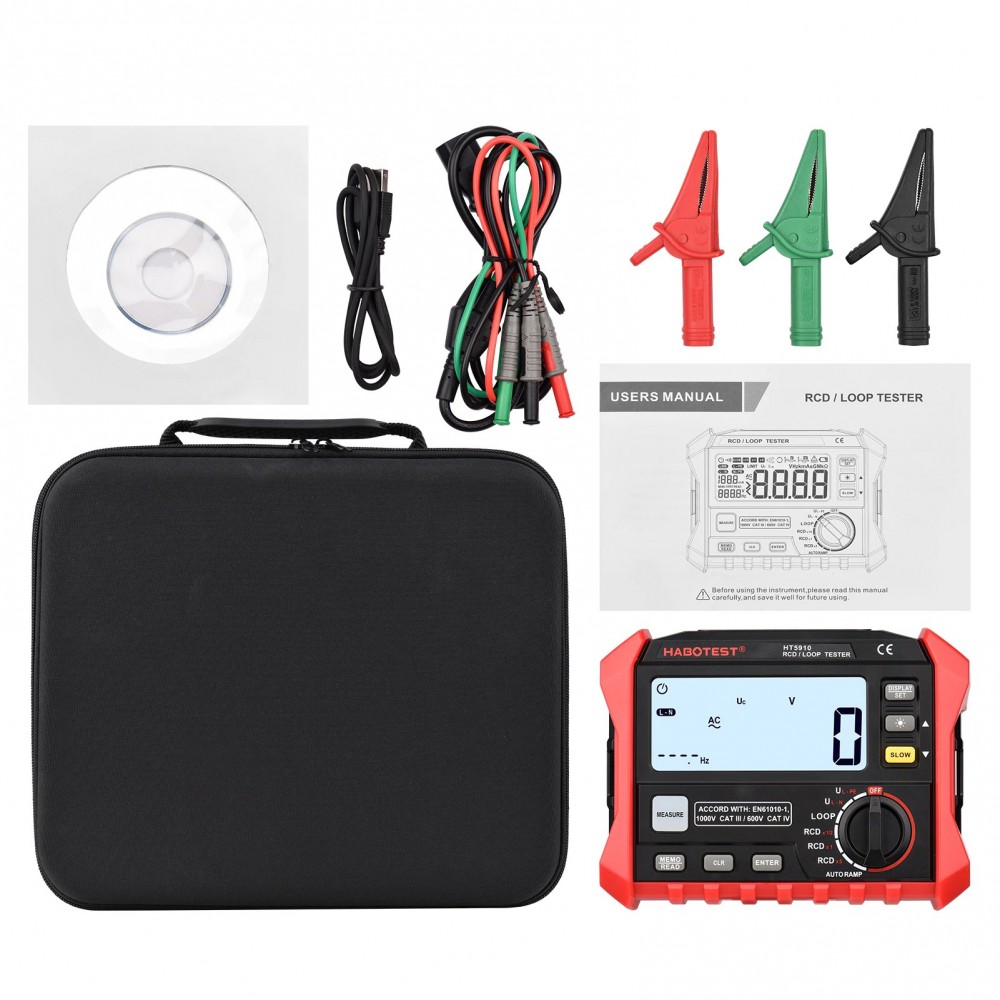

    The package:

    1 x Resistance Tester
    1 x CD
    3 x Clips
    1 x Data Cable
    2 x Test Lines

  • manufacturer
    Habotest
    garantie
    1 year
    Stock
    In stock
    Article No.
    hab-ht5910
    Weight
    1.3 kg/pcs
