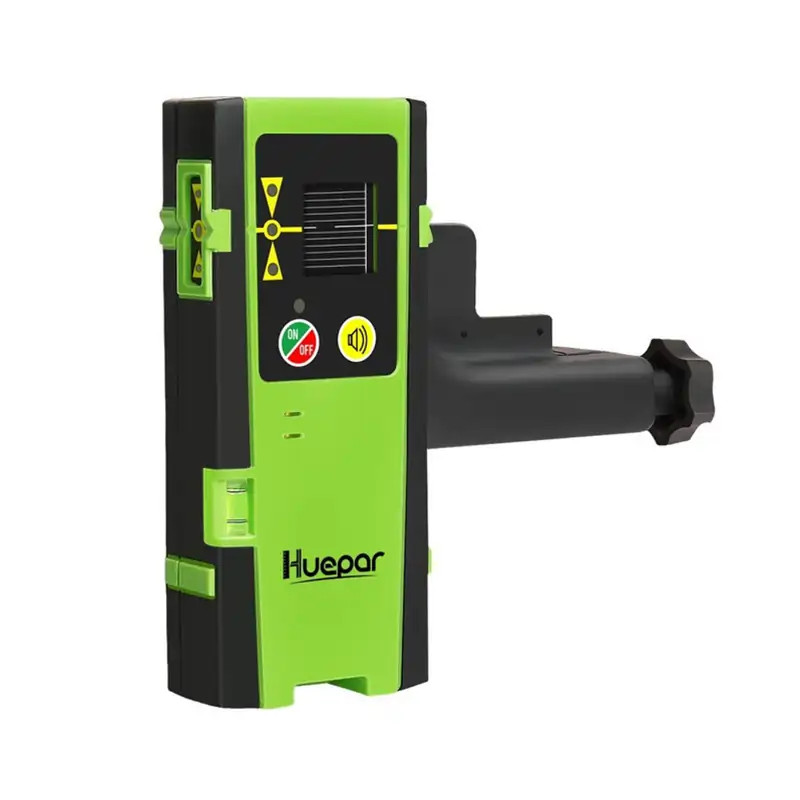

Huepar Outdoor Receiver for red and green laser lines LR 6RG (lasers with pulse mode only)

  • Specifications:

      • PWM: 1:1
      • Frequency: 10KHz (Matched PWM and frequency,Line lasers can work with LR-6RG Laser Receiver)
      • Display Three-sided LED indicator display
      • Leveling Accuracy: ±1.5 mm (±1/17 In.)
      • Laser Reception Window Width: 20 mm(4/5 In.)
      • Laser Reception Window Height: 20 mm(4/5 In.)
      • Working Distance: 60 m(200ft)
      • Operating Time: 70 hours
      • Auto Power Off (with No Signal Detected) 8 mins
      • Power Source: 1*9V Dry Battery
      • Operating Temperature Range: -10℃ to + 50℃
      • torage Temperature Range: -25℃ to + 70℃
      • Dimension (LxWxH): 140.5×60×35 mm (5.5x2.5x1.5 inches)
      • Weight:143 g

    Feature:

    ️HUEPAR DEDICATED RECEIVER- Huepar LR-6RG receiver can ONLY be used with Huepar Line Laser Levels that feature Pulse Mode Function. Please pay attention to that this receiver can NOT be used with Rotary Laser Level. And the receiver can NOT be used with Huepr 9011G&9211G laser level.

    ️AVAILABLE FOR RED AND GREEN PULSE LASER- It is necessary to Turn ON the Pulse Mode of the laser level when using with Huepar LR-6RG laser receiver. This receiver allows detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200ft (60m).

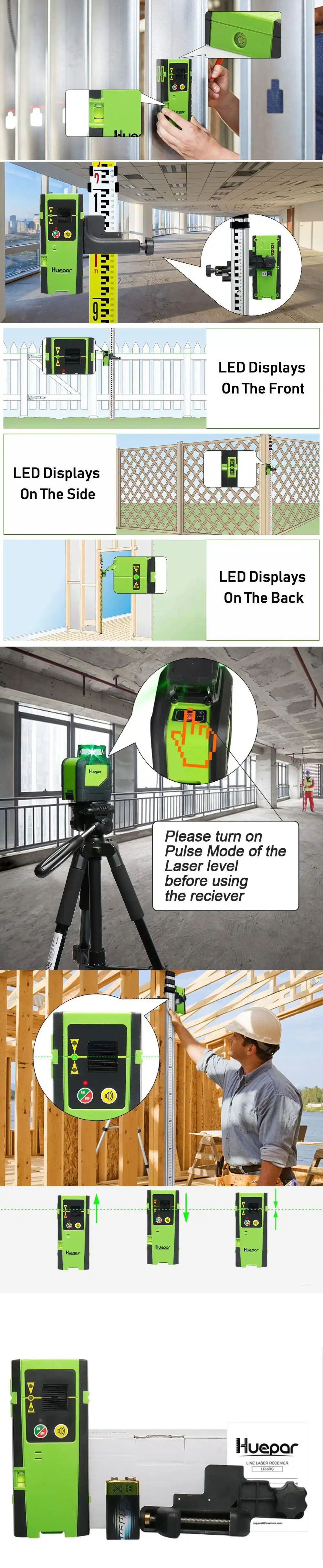

    ️CLEAR MULTI-SIDED READOUTS- Ergonomic design with display on the front, side and back of receiver, offers easier visual readout. This unit is outfitted with a dual-sided Bubble Vial on both the front and top, in order to more accurately determine the level.

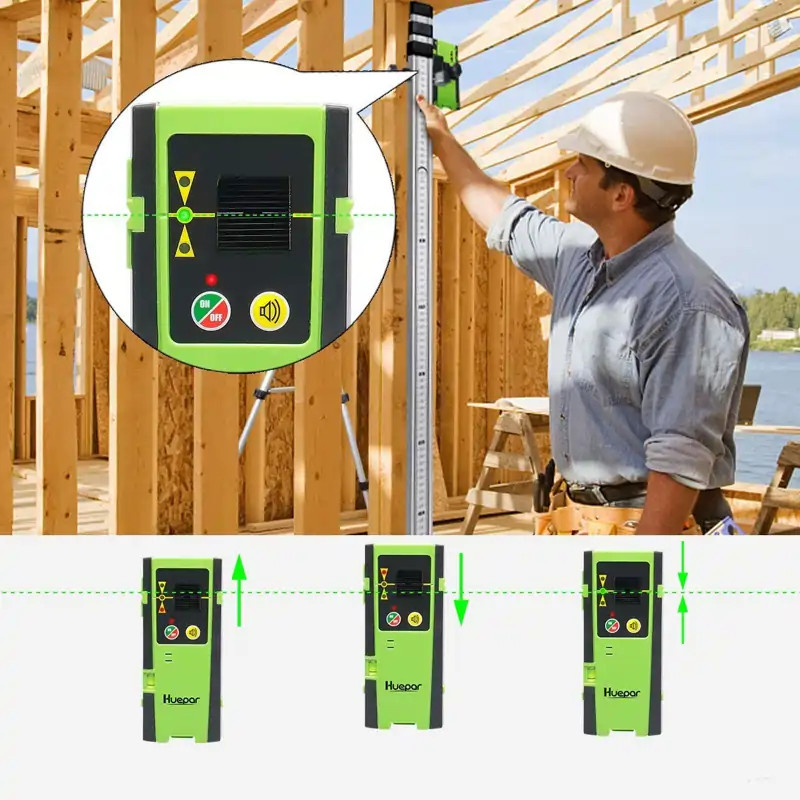

    ️PRECISE OPTICAL AND ACOUSTIC SIGNALS- This laser receiver features a user-friendly interface and is smart in its simple design. Optical and acoustic signals help to locate the laser plane quickly and accurately. The LED indicator provides a clear and accurate signal. Beep sounds will remind you when you find the target.

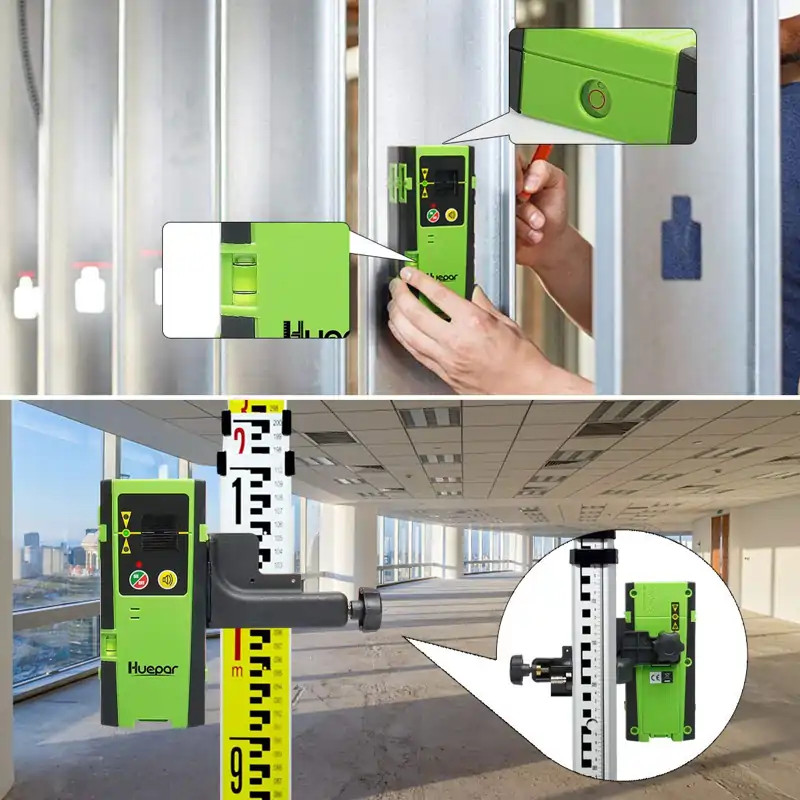

    ️LONG BATTERY LIFE AND CLAMP HOLDER- The receiver comes with a 9V dry battery, providing you with about 70 working hours. There is also an automatic shut-off feature that power down the device after about 8 minutes of being idle to extend battery life. The attached heavy-duty clamp makes it easy to mount the detector to a rod or other target point.

    Items in the package:

    • 1*Huepar LR-6RG Laser Detector
    • 1*Heavy-duty clamp
    • 1*9V Dry Battery
    • size: 19x8x8,5 cm
    • weight: 0,34 kg



  • manufacturer
    Huepar
    suitable lasers
    red & green line lasers (with pulse mode)
    frequvency
    10 kHz
    pulse duration
    50 μs
    PWM
    5:5
    display
    three sided LED indicator
    accuracy
    ±1,5 mm
    reception window
    20x20 mm
    bubble
    magnets
    x
    working distance
    60 m
    operating time
    70 h
    beep
    quiet/loud/off
    auto power off
    8 min
    power source
    1 x 9 V battery
    working temperature (°C)
    -10℃ ˘- +50℃
    storage temperature (°C)
    -25℃ - +70℃
    dimensions (mm)
    140,5×60×35
    weight (g)
    150 g
    garantie
    1 év
