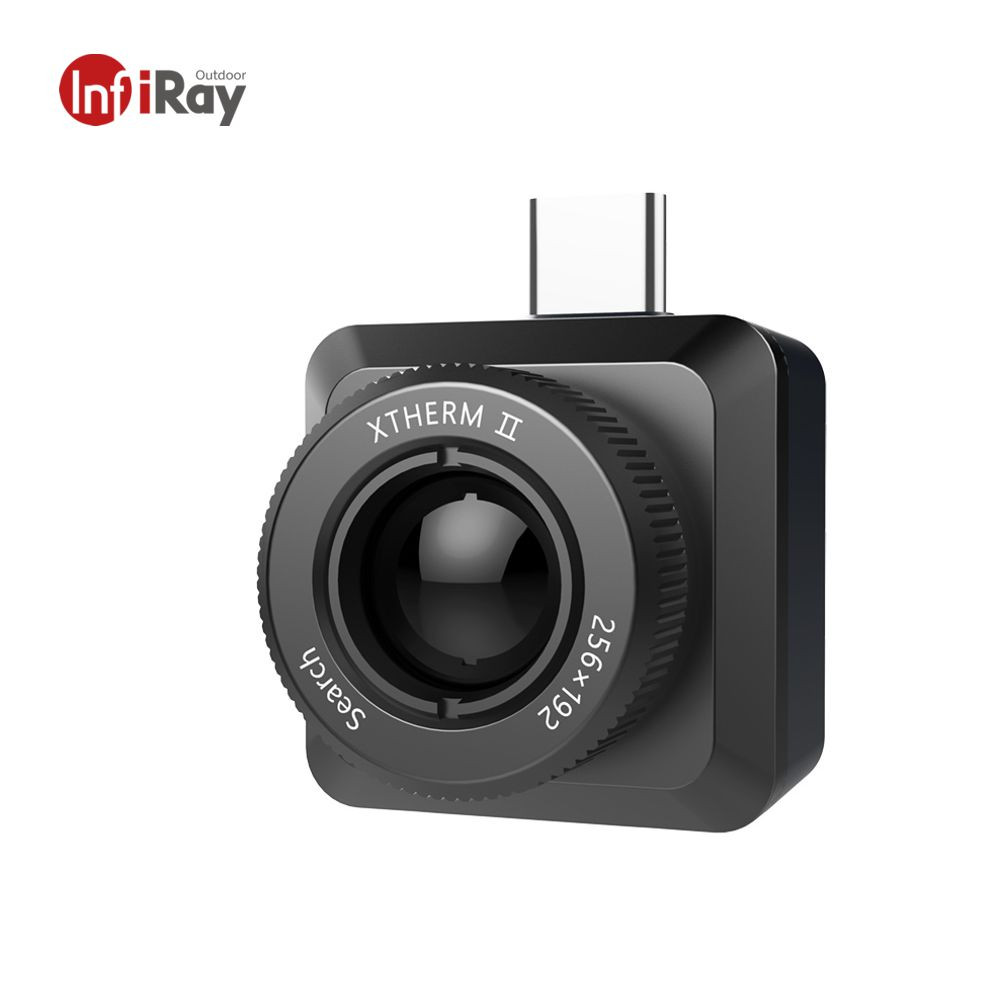

InfiRay Xtherm II T2 Search - thermal imaging camera for smart phones: outdoor observation & hunting, IR 256x192
InfiRay XTherm II T2 Search thermal camera for mobile phones for outdoor surveillance and hunting: 25 Hz, manual focus, 256x192 pixel thermal image, distance 870 m.
-
Specifications:
- Resolution: 256×192
- Pixel Pitch: 12 μm
- Focusing Mode: Manual
- Frame Rate: 25 Hz
- FOV: 19.6°×14.7°
- Objective Lens: 13 mm
- Observing distance: 870 m
- Temperature measuring range: 0°C~80°C
- Temperature measuring error: ±3°C
- Size (with lens): 26×26×26.6 mm
- Phone Compatibility: Android 6.0 and above
Items in the Package:
- 1 x InfiRay XTherm II T2 Search
- 1 x case
- USB-C cable
- 1 x English User's Manual

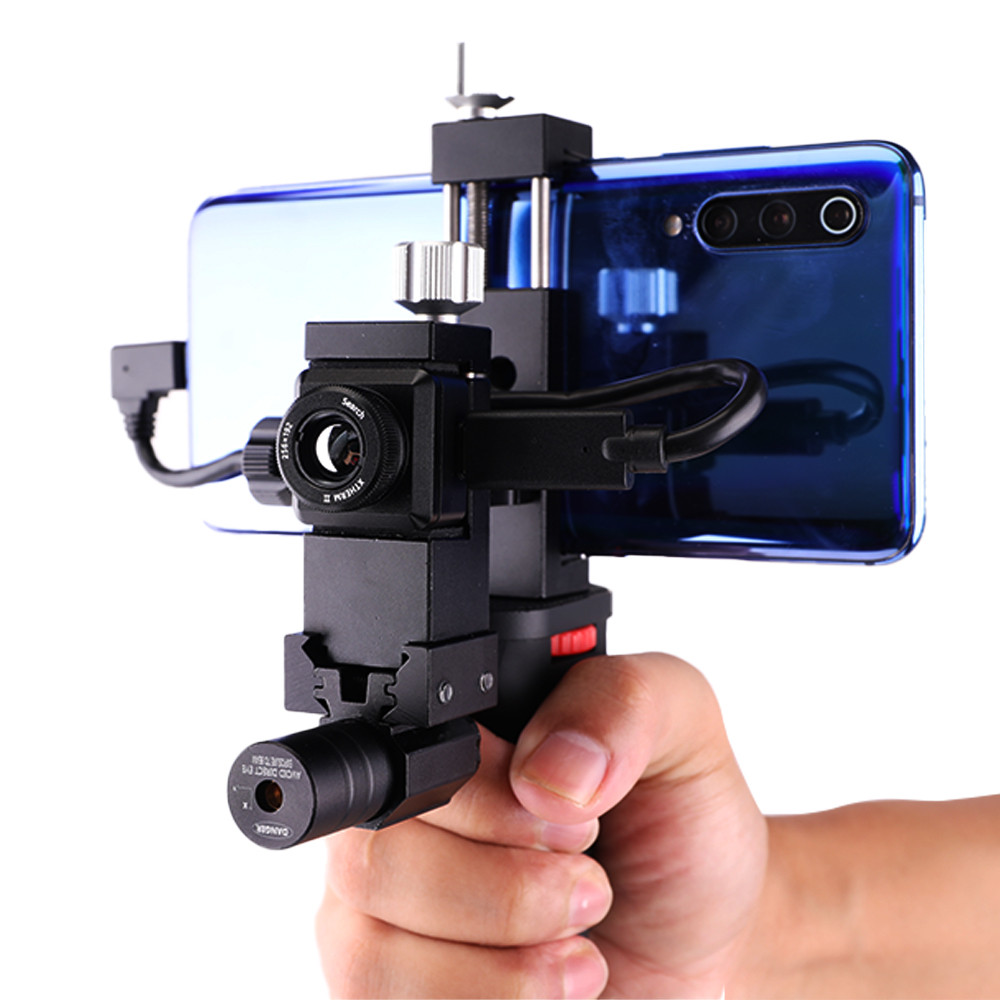

- 1 x bracket + Laser Sight
- weight: 530 g
- size: 18x11x11 cm
InfiRay Thermal Monocular (outdoor observation & hunting） Model type DL13 DP09 T2 Search T3 Photo
APP Name Search / Using alone Search / Using alone Search Search Resolution 384×288 256×192 256×192 384×288 Pixel Spacing 17μm 12μm 12μm 17μm Frame Rate 25Hz 25Hz 25Hz 25Hz Objective Lens, mm 13mm 9mm 9mm 19mm FOV 23.6°×20.7° 19.6°×14.7° 19.6°×14.7° 19.5°×14.7° Magnification, × 1/2/4 1/2 1-4x 1-4x Battery CR123 (3.7V) 3.7V 16340 Using Phone Battery Using Phone Battery Weight ＜90g ＜85g ＜40g ＜40g Dimension, mm 77×56×36 77×56×36 26×26×26 49.5×26×30 Power Consumption, mW 800±100 600±100 ＜500mW ＜500mW Interface Type-C Type-C Type-C Type-C Distance 870m 870m 870m 1300m Temperature measurement 0°C~80°C 0°C~80°C 0°C~80°C 0°C~80°C Measurement accuracy ±3°C ±3°C ±3°C ±3°C Using Methods Alone & Using with Phone Alone & Using with Phone Using with Phone Using with Phone Screen Size 720*540 Lcos Screen 720*540 Lcos Screen Using Phone Screen Using Phone Screen Laser Phone Holder with Laser Pointer Phone Holder with Laser Pointer Phone Holder with Laser Pointer Phone Holder with Laser Pointer
-
manufacturer InfirayStock In stockArticle No. iray-t2seWeight 530 g/pcs
-
Google play "Infiray Search" apk : google play link
