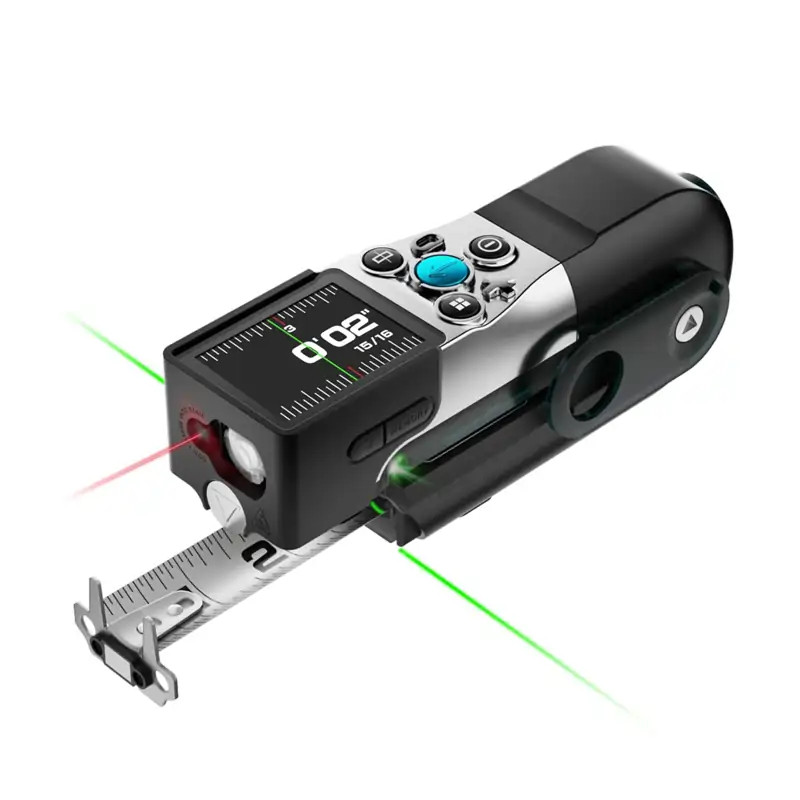

Mileseey XTAPE1 - Laser tape distance meter 3-in-1: IPS display, 100 m / 3.5 m, app connectivity, marking laser

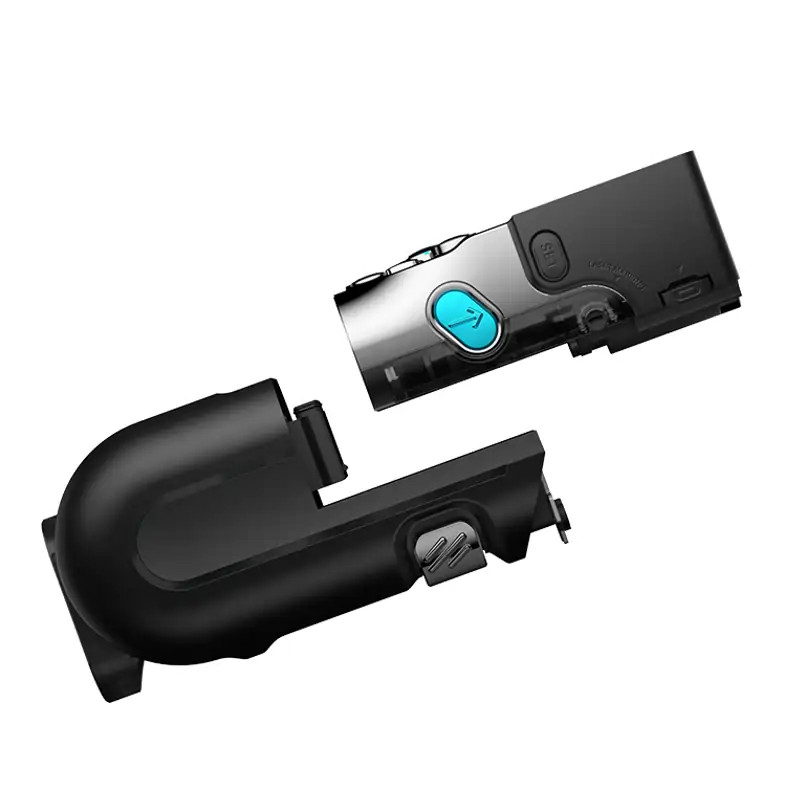

100 m laser range, 3.5 m measuring tape, green lateral marking laser. Modular design, the laser distance meter and measuring tape can be used separately. Tape display on the screen with < 1 mm digital accuracy, device end point measurement with tape, color display, measurement between any two points, area, volume, indirect height measurement, sectioning, Bluetooth connection, replaceable measuring tape.
-
> 3 Types Measures Effortlessly: XTAPE1 smartly combines a digital tape with a laser measure in one sleek design, offering users effortless measuring solutions to any distance without switching tools. Users can rely on the 3.5m tape measure for complex woodwork projects or the 100m laser meaure for large home renovations measurements for quick replacement if the tape breaks or wears out, or if users want to switch the unit of measure between metric, imperial or split(Attached is a metric unit tape measure).
> Accurate, Whatever the Environment: Thanks to proprietary Super OptiTracking tech, Our XTAPE1 delivers consistent accuracy of up to ±0.8mm no matter the conditions, maintaining reliable performance even in the toughest jobsite environments.
> Perfect Alignment & Fast Calculations: XTAPE1 features an industry-leading green aligning laser with exceptional brightness and extended range, making it ideal for cross-surface alignment and precise marking on uneven surfaces, which featuring multiple advanced measuring functions, XTAPE1 excels in calculating distances in complex or obstructed spaces, making it a versatile tool for challenging environments.
> Never Forget the Data: Juggling between data capture and plan sketch can get quite hectic. XTAPE1 features a dedicated APP that allows easy data transmission from the device to your smart phone or tablet. It also allows you to annotate the measured data to the dimensions on a hand-drawn sketch or an uploaded on-site photo.
> Designed to Last Longer: Sturdy engineering materials with IP54 protection offers excellent resistance to dust, splash and impact, ensuring reliability in harsh work environments. Packed with a 1,500mAh rechargeable lithium battery, XTAPE1 boasts an amazing battery life of up to 8 hours with standby time up to 30 days.
> Measure Any Angle with Ease: Featuring Live Angle Display, XTAPE1 can easily measure any included angle in any surface using the green aligning laser as base reference， perfect for creative home renovation projects like accenting walls.
Specifications:
- range:
- distance meter: 100 m*
- measuring tape: 3.5 m - Laser class: Class 2 (IEC/EN60825-1/2014), <1 mW output
- distance meter colour: red
- marker laser colour: green
- accuracy: ±2 mm
- digital accuracy (tape measure display): <1 mm
- calibration (in case of tape change)
- adjustable reference point
- max-min measurement (continuous measurement)
- addition - subtraction
- auto level measurement
- indirect height measurement **
- area, volume measurement
- incremental measurement
- angle measurement
- combined measurement
- memory: 30 groups
- display: colour, rotatable
- unit change
- interchangeale tape measure
- power source: 2600 mAh Li-ion battery
- IP protection: IP54
* depending on ambient light conditions
**exact measurement only possible with the same reference point
Package contents:
- 1 laser measuring module
- 1 measuring tape module
- 1 shell-shaped storage case
- 1 wrist strap
- 1 USB cable
- 1 manual
- package weight: 1100 g
- package size: 240x110x95 cm
- range:
-
manufacturer Mileseeyunidirectional/bidirectional measurement one waymeasuring range (m) 100laser color red & greenlaser wavelength (nm) 515 / 635laser class Class 2 (IEC/EN60825-1/2014), <1mWcamera xbluetooth √display type colour, graphicrotating display √digital protractor √, one verticaldigital bubble √accuracy (mm) ±1,6reference points 3max/min measurement √distance measurement √area √painter mode xcamera area xvolume √trapezoid xtrapezium calculation with angle xtriangle area xcircular area xcylinder volume xaddition / subtraction √virtual tape xdelayed measurement xwheel measurement xother features tape 3,5 mmemory 50sound signal on / offcalibration √unit switch √built-in magnet xpower source 1500 mAh Li-ion batterycharging interface USB-Ctripod screw hole 1/4"storage temperature (°C) -10-+60working temperature (°C) 0-+40laser off (s) 30IP rating IP54device off (s) 180product size (mm) 162x51x67housing material plastic, rubber coatingbuttons rubber buttons, plasticweight (g) 476the package device with built in battery, protective case (shell), hand strap, USB cable, manualInventory VANItem number mil-xtape1Weight 1.1 kg/pcs
