Noyafa NF-518S - 3 in 1: wall detector, rangefinder and inclinometer

Stock: In stock
Noyafa NF-518S - 3 in 1: wall detector, rangefinder and inclinometer
29 800 Ft , (23 465 Ft+VAT)
shipping costs
:
Favourable delivery charges.
postage
:
domestic- 24h; international- 24-72h

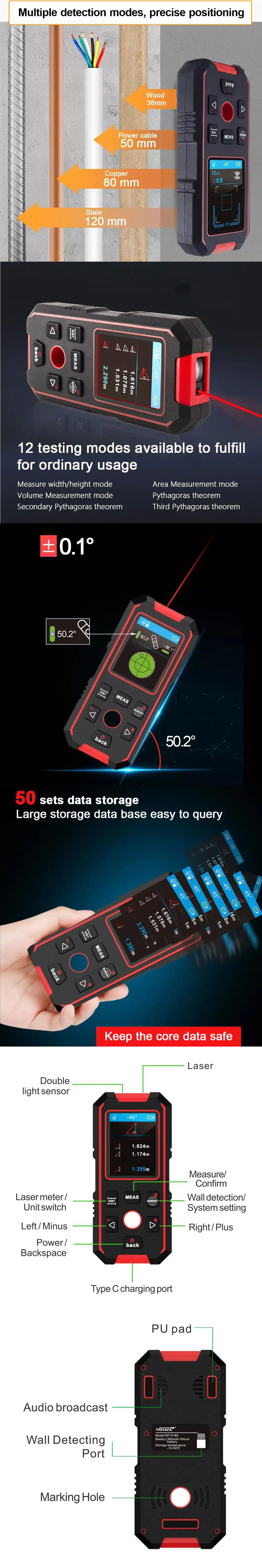

Compact measuring instrument with 3 main functions: wall detector, distance meter and inclinometer. Suitable for detecting magnetizable and non-magnetizable metals, AC phase and wooden elements behind walls. The rangefinder has a range of 40 m with 12 measuring modes.

  • Details:



    Specifications
    Product number NF-518S
    Functions Laser distance* Wall Detection* Digital level
    Apperance 2 colors, solid shape
    Display 2.4 HD screen, 240*320 resolution
    Charging port USB-C
    Battery type Lithium Battery (390 mAh)
    Protect Level IP54
    Audio Broadcast Live Broadcast
    Dimension (mm) 63*25*139 mm
    Net. Weight (g) 200 g
    Laser Meter Function Wall Detection Function
    Distance 0.2-40/60m Magnetic metal
    Accuracy ± 1,5 mm + D*0,00005  Non-magnetic metal
    Laser Type 630-670nm,<1mW AC power Detection
    Laser Cat. Cat 3 Wood
    Auto OFF 4 minutes Depth Measurement Maqnetic Metal  12 cm
    Unit Switch m / ft / in / ft+in Non- Magnetic Metal 10 cm
    Benchmark Switch Front / Bottom AC power cable 5 cm
    Continuously Measurement Max / Min value Wood 3.8 cm
    Single Measurement Auto off 5 min
    Area Measurement Operation Temperature 0~50°C
    Volume Measurement Storage Temperature -10~60°C
    Pythagoras theorem
    Secondary Pythagoras theorem 1
    Secondary Pythagoras theorem 2
    Triangle area measurement
    Trapezoid measurement
    Auto Horizon measurement
    Auto Vertical measurement
    Countdown measurement
    Digital level measurement ±90°
    Plus / Minus
    History Record Storage
    Self collaboration
    Operation Temperature 0~40°C
    Storage Temperature -10~60°C



  • manufacturer
    Noyafa
    unidirectional/bidirectional measurement
    one way
    measuring range (m)
    40
    laser color
    red
    laser class
    Class 2 (IEC/EN60825-1/2014), <1mW
    camera
    x
    bluetooth
    x
    screen
    colour
    digital protractor
    √, one vertical
    laser wavelength (nm)
    635
    accuracy (mm)
    ±1,5
    reference points
    2
    max/min measurement
    distance measurement
    area
    volume
    pitagoras- from hypotenuse distance, height, angle
    indirect height (double pitagoras from two hypotenuse)
    trapezoid
    painter mode
    x
    addition / subtraction
    memory
    50
    delayed measurement
    voice
    english/CN/off
    calibration
    unit switch
    other features
    wall detector, digital bubble level
    power source
    390 mAh Li-ion battery
    charging interface
    USB-C
    tripod screw hole
    x
    storage temperature (°C)
    -10-+60
    working temperature (°C)
    0-+40
    laser off (s)
    30
    IP rating
    IP54
    device off (s)
    180
    product size (mm)
    140x65x25
    accessories
    charging cable, canvas case
    weight (g)
    146
    Stock
    In stock
    Article No.
    noy-518s
    Weight
    500 g/pcs
