Noyafa NF-911C - 3 in 1 Optical Multimeter

Stock: In stock
Noyafa NF-911C - 3 in 1 Optical Multimeter
  • Noyafa NF-911C - 3 in 1 Optical Multimeter
54 900 Ft , (43 228 Ft+VAT)
shipping costs
:
Favourable delivery charges.
postage
:
domestic- 24h; international- 24-72h

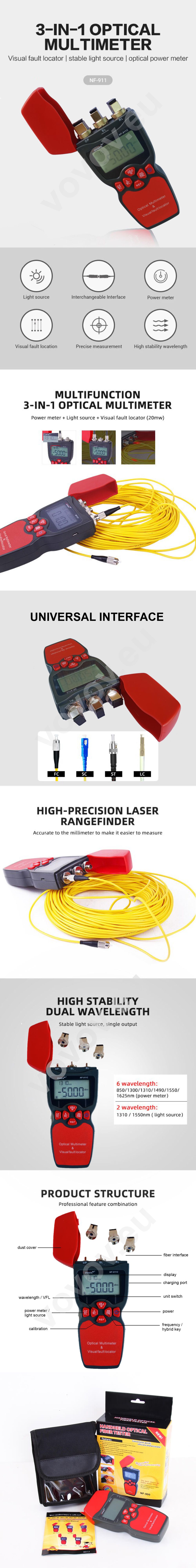

The Optical multimeter Noyafa NF-911 is a measurement set in one housing, consisting of a precise source, an optical power meter and a visible light source, designed for bidirectional measurements of attenuation and reflectance in fiber optic systems and networks.



  • Measurement of the power of optical sender (dBm and W).
  • Insertion loss test of optical devices.
  • Light source function.
  • Check fiber breakage, winding, etc.
  • New REF user-defined.
  • FC/SC/ST general-purpose interface.
  • Wavelength: 850 /1300 /1310 /1490 /1550 /1625 nm (power meter).
  • Wavelength: 1310 /1550 nm (light source).
  • Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
  •

    Optical power meter
     Detector  InGaAs
     Wavelength (nm) 850, 1300, 1310, 1490, 1550, 1625
     Measuring range -50 dBm ~+26 dBm
     Resolution  0.01 dBm
     Accuracy 3%
     Identification Frequency Range 10Hz~60KHz
     Connector  universal 2.5 mm
    Source of light
     Emitter Type FP-LD
     Wavelength  1310 / 1550 nm
     Modulation frequency  CW /270Hz, 1Hz, 2Hz
     Output Power(dBm) -7 dBm
     Output Stability ±0.05dB /15 mins; ±0.1dB / 8 hours
     Connector  universal 2.5 mm
    VFL
     Wavelength  650 nm
     Emitting Energy 5mw/ 10mw/ 20mw/ 30mw selectable
     Operation Mode Pulsed (2Hz) and CW
     Connector  universal 2.5 mm
    General parameters
     Power supply  3x AA battery; 3x AA Ni-Mh battery
     Permissible operating temperature  -20°C ~ +70°C
     Dimensions  160 x 75 x 32 mm
     Weight  205 g
     Kit contents  meter, cover, manual
     Package size
    19x16x6 cm
     Package weight
    380 g





  • manufacturer
    Noyafa
    Stock
    In stock
    Article No.
    noy-911c
