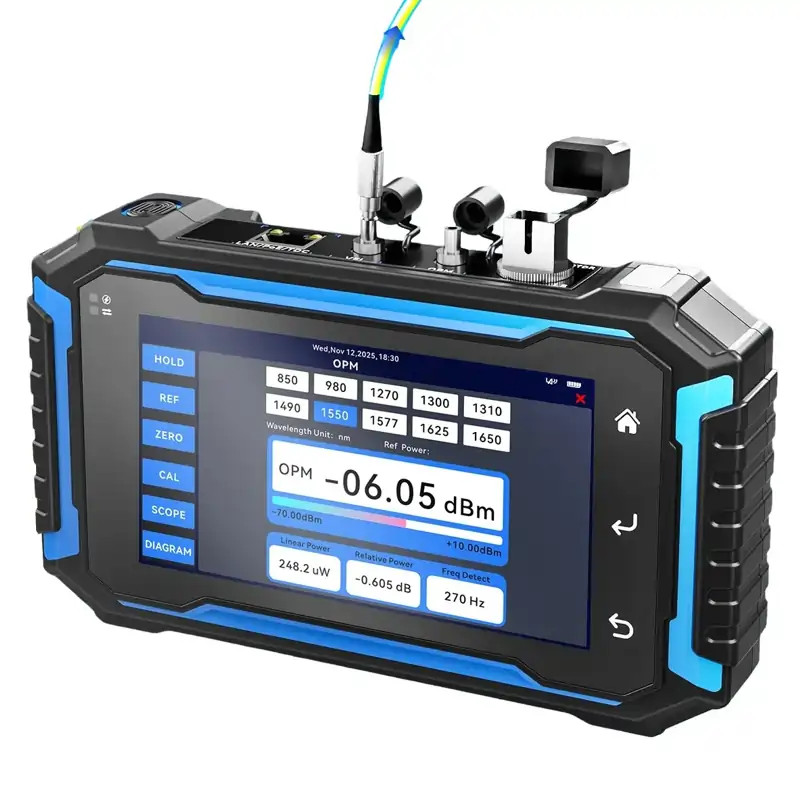

Noyafa NF-982 - Multifunction OTDR Tester for Optical Fiber & Network Cable Testing

NEW
Inventory: VAN
Noyafa NF-982 - Multifunction OTDR Tester for Optical Fiber & Network Cable Testing
  • Noyafa NF-982 - Multifunction OTDR Tester for Optical Fiber & Network Cable Testing
165 750 Ft , (130 512 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h
pcs Add to Cart Add to Cart

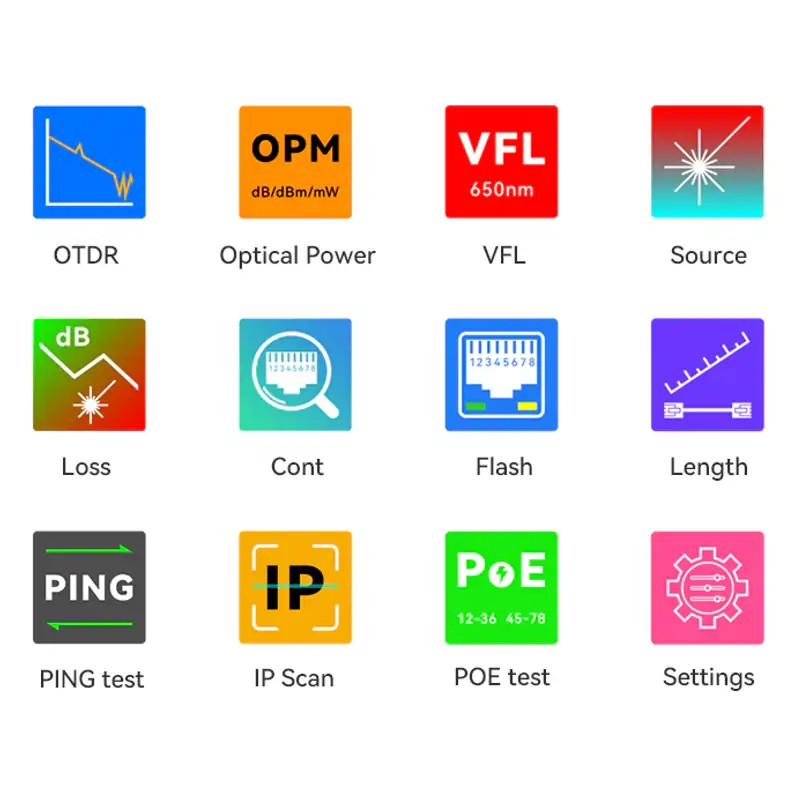

Multifunction OTDR tester: touchscreen, OPM, LS, VFL, RJ45 test modes, etc., 3200 mAh Li-polymer battery.
OTDR: 1310 /1550 nm
30 dB /28 dB
OPM: 850 /1270 /1300 /1310 /1490 /1550 /1577 /1625 nm
UTP cable test
RJ45 TDR cable test

Details Data

  •

    Specifications
     Model NF-982
     LCD Display 5.5” TFT HD Screen 1280*720; Touch Panel
    OTDR
     Testing Range (km) 0.5 /1.25 /2.5 /5 /10 /20 /40 /80 /125 /150
     Wavelength (nm) 1310 /1550 dual wavelength
     Dynamic Range (dB) 30/28
     Event Dead Zone (m)  ≤1.6 m
     Attenuation Dead Zone (m) ≤8 m
     Pulse Width (ns) 3 /5 /10 /20 /30 /50 /80 /100 /200 /300 /500 /1000 /2000 /3000 /5000 /8000 /10000 /20000
     Measurement Accuracy ±1M+ Sampling Interval + 0.005% X Test Distance
     Measurement Time (s) 5-180
     Minimum Distance Resolution (m) 0.05
     Sample Points 320,000 (high precision); 64,000 (fast mode)
     Loss Resolution (dB) ±0.20
     Interface Type UPC
     Laser Safety Class Class II level
    OPM
     Optical Sensor Type InGaAs
     Wavelength 850 nm, 980 nm, 1270 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1577 nm, 1625 nm, 1650 nm

     Measurement Range -70 ~+10 dBm
     Design Accuracy ±0.5 dB
     Identification Frequency 270 Hz /330 Hz /1000 Hz /2000 Hz
    VFL
     Supported Power: 10 mW Visible red light is emitted to detect faults in optical fiber lines, such as breaks, cracks, and bends.
    Network
     Wire Length Measurement 5~350 m
     PoE Function 1.1 EEE 802.3 af / at / bt
    2.End-span / Mid-span / 8-core power
    3.5-75 V
     Port Flash Supported
     PingTest (ICMP+DHCP) Supported
     IP Scan ARP Supported
     Wire detection remote and local; cable sequence,open, short, ceoss, audible voice prompts, LED indicator
    Interface
     OTDR Interface SC-UPC /FC-UPC /ST-UPC
     Optical Power Interface Supports FC / SC / ST universal interfaces
     Visual Fault Locator Interface 2.5 mm universal connector
     Wire Mapping Port RJ45
     Length & Port Flash Test Port RJ45
     Device Charging Port Type-C /5V-2A
    General
     Battery Powered 3.7 V, 3200 mAh lithium battery
     Type-C Charging Port Type-C
     Charging Time 4 hours
     Operating Time Around 10 hours
     Working Temperature -10°C~+50°C
     Working Humidity max. 95%
     Storage Temperature -40°C~+70°C
     Dimensions /Weight 191*126*44 mm,  ~550 g



  • manufacturer
    Noyafa
    garantie
    2 years
    Inventory
    VAN
    Item number
    noy-982
    Status
    NEW
    Weight
    1.16 kg/pcs
