Product Details

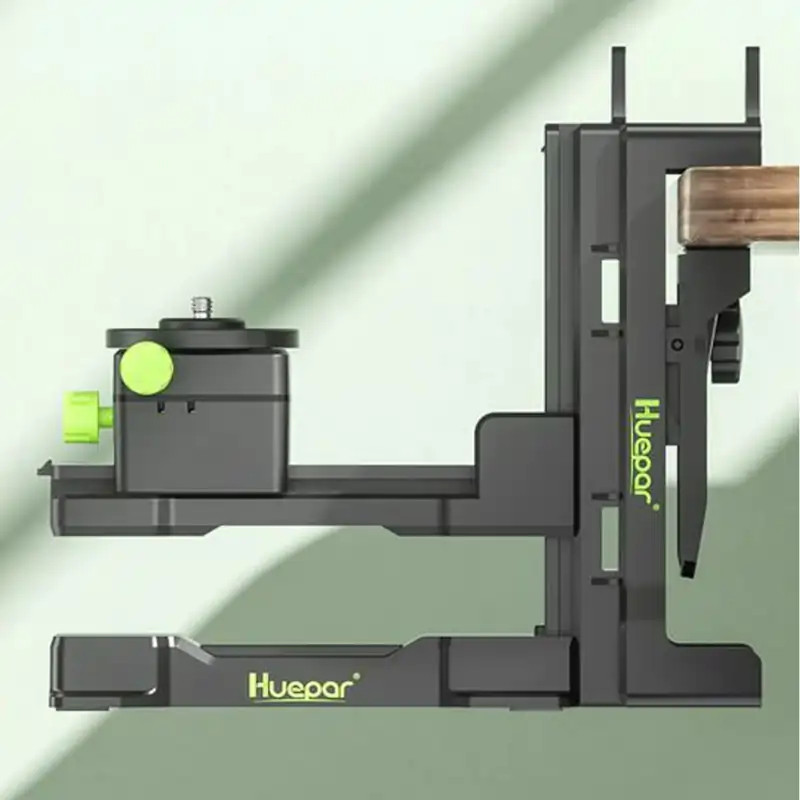

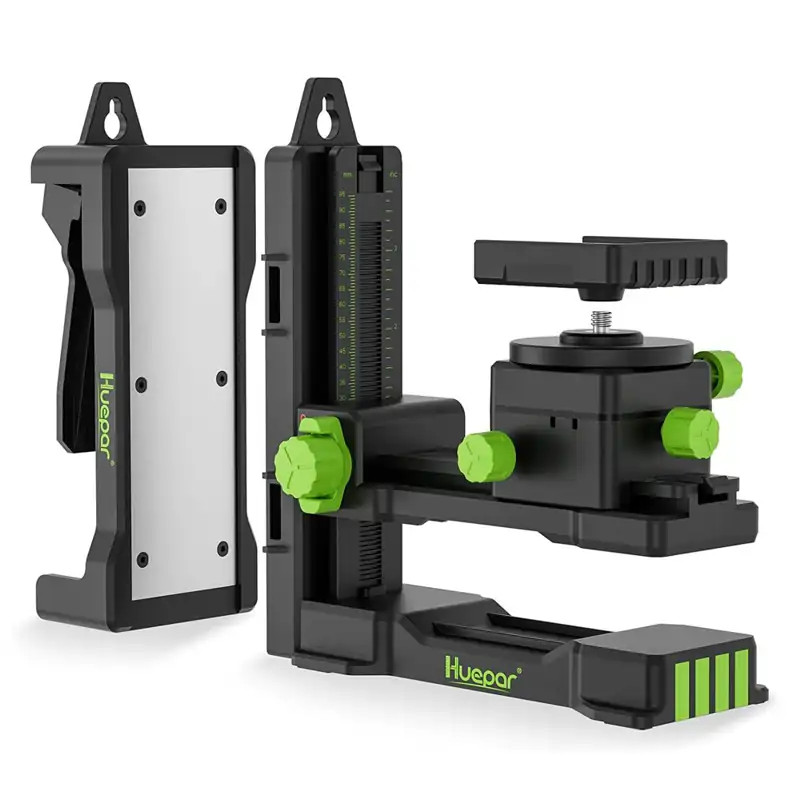

Huepar Pv11+ - fine-tuning bracket with clip
For everyday use. Professional bracket with clip and strong magnet. 360° rotation, height fine adjustment, horizontal fine adjustment (X and Y).
-
model PV10+ PV11+ height adjustment 93 mm (90 mm marked) 100 mm (95 mm marked) left/right adjustment ± 13 mm ± 8 mm left/right adjustment method screw thread rack and pinion back/forth adjustment (thread distance to the side of the bracket) 35-88 mm 45-115 mm (55 mm marked) back/forth adjustment method screw thread rack and pinion horizontal rotation 360° 360° clip size max 50 mm max. 50 mm clip adjustment method screw thread quick release tilt with window adapter ~10° x window adapter compatibility 9xx; Bxx; GFxx model family Sxx; Pxx; Zxx model family clip vertical correction √ x plate size on the clip 140x55 mm 145x50 mm male thread 1/4"-20 screw thread; 1/4-5/8 adapter 1/4"-20 screw thread fixing methods magnet, clip, hanging, tripod magnet, clip, bindings, hanging, tripod female thread for tripod 1/4"-20 & 5/8"-11 1/4"-20 & 5/8"-11 load capacity 3 kg 3 kg weight 665 g 660 g the package bracket, clip, window adapter, magnet plate, 1/4-5/8 adapter, manual bracket, clip, window adapter, manual package weight 1,1 kg 1 kg packege size 25x22x11 cm 24x22x10,5 cm main advantages (without window adapter compatibility) several accessories, tilt with the window adapter, vertical correction on the clip larger devices are easier to attach to the bracket; faster fine adjustment
-
Stock In stockArticle No. hue-pv11pStatus NEW  Weight 1 kg/pcs
