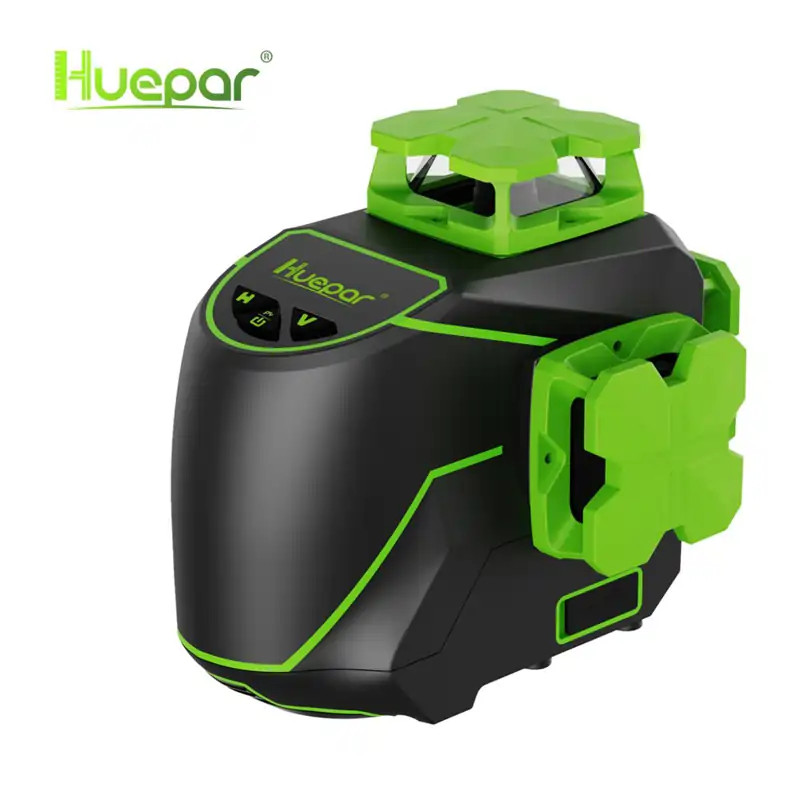

Huepar S03CG-L - 12 lines, 3D (3x360°) green beam laser level

Stock: In stock
Huepar S03CG-L - 12 lines, 3D (3x360°) green beam laser level
  • Huepar S03CG-L - 12 lines, 3D (3x360°) green beam laser level
71 000 Ft , (55 906 Ft+VAT)
shipping fee
Favourable delivery charges.
postage >
Domestic- 24h; international- 24-72h

S series: new series. Tilt mode, outdoor mode, accessories.

  • S03CG-L 3D Green Laser Level Specifications:

    • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
    • Laser Wavelength: 510-530 nm
    • Horizontal/Vertical Accuracy: ± 3 mm/10 m
    • Leveling/Compensation Range: ± 4°
    • Working Distance (Line): 20 m (60-100 LUX), ≥40 m with Huepar Receiver Huepar LR-6RG;  Huepar LR-5RG; Huepar LR-8RG
    • Operating Time: over 6 hours continual use with all laser beams on
    • Power Source: 2600 mAh Li-ion battery & Dry battery
    • IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
    • Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
    • Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
    • Mount Size: 1/4"-20


    WARNING - Avoid direct exposure of the laser beam to the eyes.


    Package includes:

    • 1 x laser level
    • 1 x Lithium battery 2600 mAh
    • 1 x Type-C cable
    • 4 x AA battery
    • 1 x Battery holder for AA
    • 1 x Magnetic Base
    • 1 x Target Plate
    • 1 x User Manual
    • 1 x Cloth bag
    • size: 23x23x21 cm
    • weight: 1.8 kg


    > FULLY LAYOUT WITH 3 X 360° LINE LASERS: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room, provides an all-in-one level and alignment solution for one-person job setup. Three laser lines cross at 90°angles makes user quickly visualize and finish square layout. The laser tool quickly arranges and squares room layout with three 360° laser lines.

    > TRIPLE POWER TECHNOLOGY: Huepar laser tool employed the included 7.4V / 2600mAh large capacity Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. In addition, this laser tool can be used at job site with direct input charging even if taking out the battery. Charging protection prevents the tool from overcharge.

    > MULTIFUNCTIONAL LASER TOOL: The one 360° horizontal and two 360° vertical laser lines can be selected individually by separate H and V button on the keypad. With our smart pendulum system, this line laser level tool self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.

    > OUTDOOR PULSE MODE: This laser level projects green laser beam which is 4 times brighter than standard red beams with a working range up to 85Ft of an accuracy +/- 1/9" at 33Ft. Besides highly visible green beam, an outdoor pulse mode extends laser working range up to 200Ft with Huepar LR-5RG/LR-6RG Line Laser Receiver in bright light or outdoor conditions and continuous working time.

    > DURABLE DESIGN & PACKAGE CONTENTS: Over-molded laser window with IP54 water/dust resistance ensures you work well in hazardous working conditions. The laser tool also offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads. Package includes Laser level, 7.4V / 2600mAh Li-ion battery, magnetic bracket, type-C power cord, power adapter, target plate, metal panel, AA battery holder, 4*AA alkaline batteries, user manual.



  • manufacturer
    laser class
    Class 2 (IEC/EN60825-1/2014), output power &lt;1mW
    laser diode
    green, OSRAM laser
    levelling method
    laser wavelength (nm)
    number of laserdiode
    2 vertical, 1 horizontal
    number of laser lines
    rotatable laser window
    laser lines fan angles
    ±3 mm / 10 m
    mobile app
    LCD display
    remote control
    self leveling mode
    tilt mode
    √, * *
    outdoor mode
    leveling compensation range
    3,5° ±1°
    self leveling time (s)
    working distance (m)
    adjustable brightness level
    working distance with detector (m)
    laser line distance from wall and ceiling (mm)
    9, 9, 12
    power source
    rechargeable battery, battery, direct input
    rechargeable battery type
    Li-ion, 7.4 V, 2600 mAh
    operating time (h)
    charging time (h)
    battery charging method
    in the device, outside the device
    charging power
    5 V, 1 A; 5 V, 2 A
    IP rating
    operating temperature (°C)
    -10℃- +50℃
    storage temperature (°C)
    -20℃- +70℃
    housing material
    plastic, strong rubber coating, robust plastic laser window frame
    device weight (g)
    625 (730)
    device dimensions (l*h*w) (mm)
    thread mount
    1/4''-20; 5/8-14
    the package
    device, magnetic bracket with fine adjustment, magnet plate, target plate, battery, charger, 4xAA battery, battery holder, manual, foam padded canvas bag
    2 years
    In stock
    Article No.
    1.8 kg/pcs
