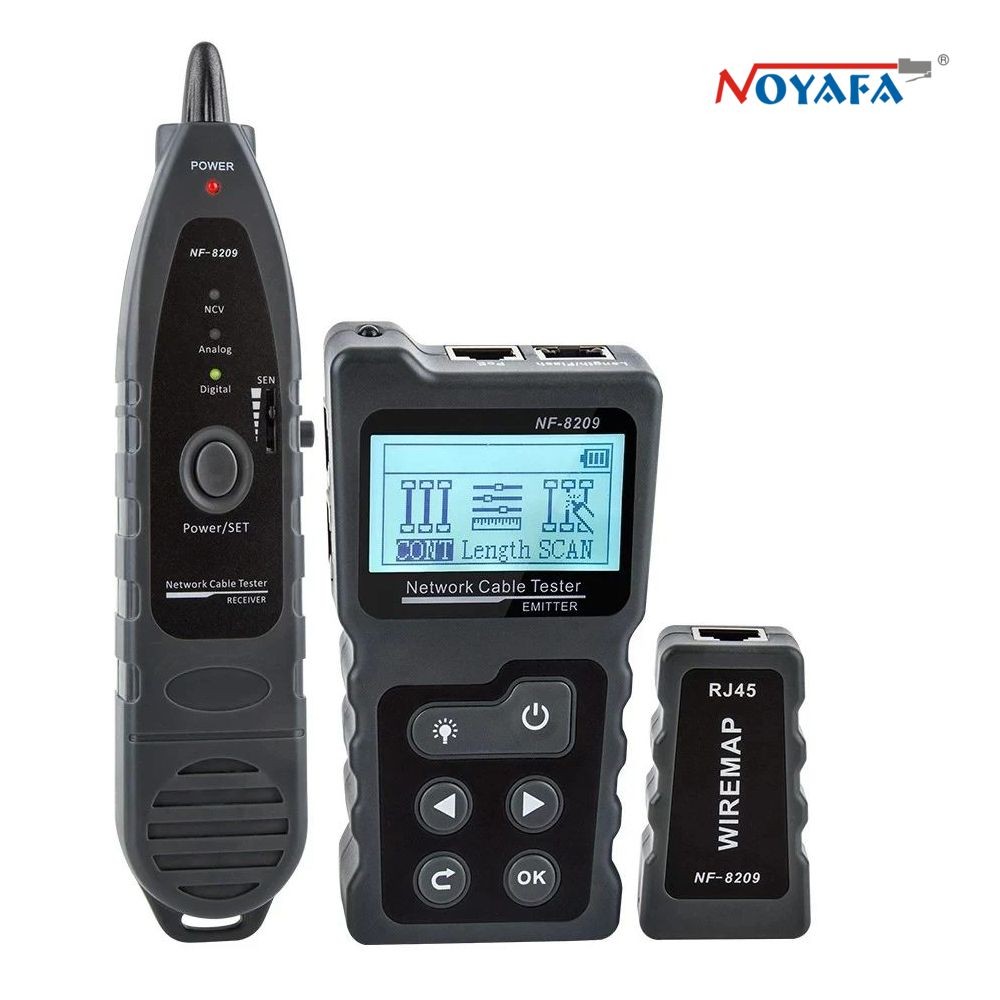

Noyafa NF-8209 - cable tester: PoE test, continuity, scanning, power test, port flash, etc.

NEW
Stock: In stock
Noyafa NF-8209 - cable tester: PoE test, continuity, scanning, power test, port flash, etc.
29 500 Ft , (23 228 Ft+VAT)
shipping costs
:
Favourable delivery charges.

Standard 802.3af/at test, measurement of non-standard PoE devices.
Cable short-circuit, breakage, cross-connection check.
Scan.
Port flash.
Cable Lenght measurement.
Measurement of power, current and voltage.
Loopback test.

  • Specifications:



    Emitter Wiremap Cable type CAT5e, CAT6, CAT6a (STP & UTP)
    Test with switch directly
    Max range 600m
    Length Cable type CAT5e, CAT6, CAT6a (STP & UTP)
    Test range 2~200m
    Accuracy ±1.6m
    Breakage location
    Scan Cable type CAT5e, CAT6, CAT6a (STP & UTP)
    Max. signal voltage 8Vp-p
    Frequency 130KHz
    Analog / Digital mode
    Max range 600m
    POE Test range DC 5~60V standard / non-standard PoE switch
    Voltage display
    PoE type IEEE 802.3af/at
    LCD display 128*64 Dot-matrix with backlight
    Power supply 3*AAA
    Low battery warning 2.7V
    Auto-off time 15min, 30min, 60min, OFF
    Voltage protection DC48V 5mA
    Max working current <150mA
    Size 130*70*28mm
    Receiver Sentivity adjustable
    AC Voltage detecting
    Lamp
    Battery type 9V*1
    Low battery warning 6± 0.5V
    Max working current <100mA
    Size 210*43*27mm
    Remote Wiremap Port RJ45
    Voltage protection DC48V 5mA
    Size 65*37*23mm



  • manufacturer
    Noyafa
    garantie
    1 year
    Stock
    In stock
    Article No.
    noy-8209
