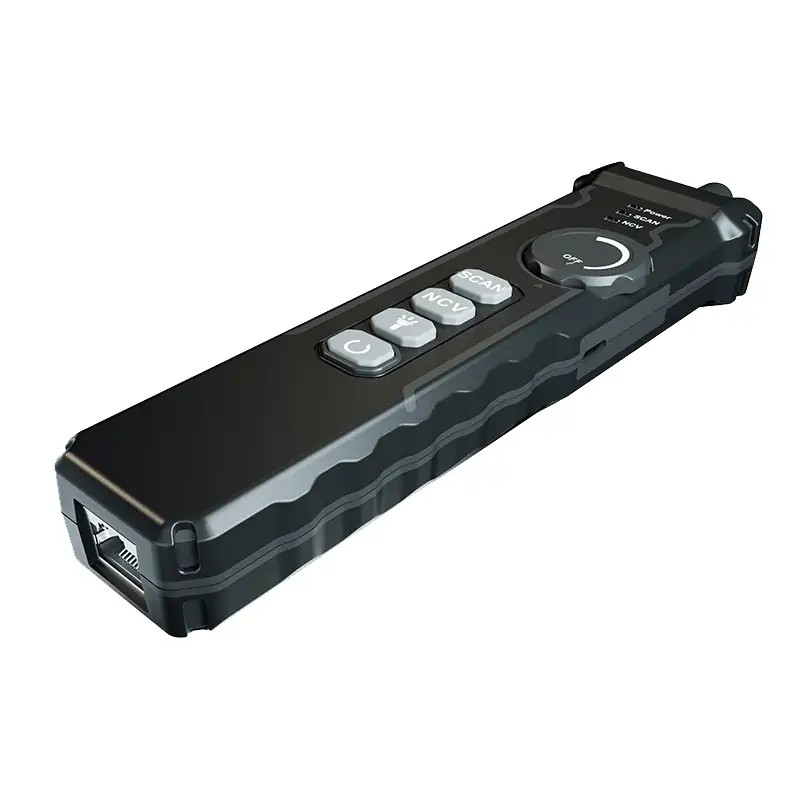

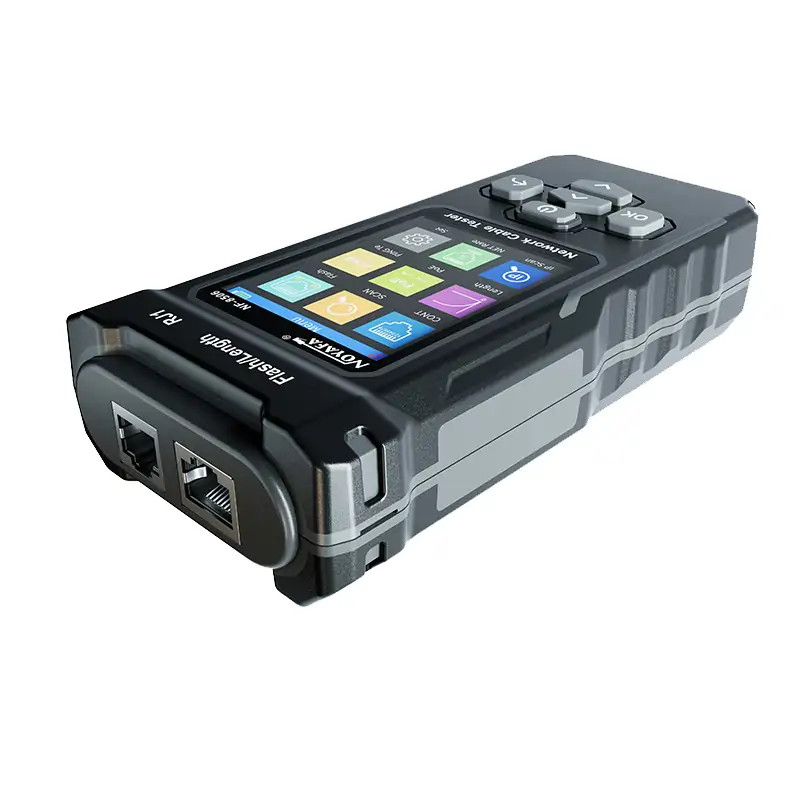

Noyafa NF-8506 - multifunction TDR cable tester

Stock: In stock
Noyafa NF-8506 - multifunction TDR cable tester
  • Noyafa NF-8506 - multifunction TDR cable tester
  • Noyafa NF-8506 - multifunction TDR cable tester
  • Noyafa NF-8506 - multifunction TDR cable tester
  • Noyafa NF-8506 - multifunction TDR cable tester
45 890 Ft , (36 134 Ft+VAT)
shipping fee
Favourable delivery charges.
postage >
Domestic- 24h; international- 24-72h

TDR network cable tester: CAT5 CAT6 ethernet, PoE ping test, port flashing, IP scanner, speed test, cable toner.


    > New Upgraded Multi-function Network Cable Tester: NF-8506 TDR network tester has IP scanning, POE test, cable tracking, continuity test, Ping test, network speed test, port flashing, sensitivity adjustment, cable function of length test and LED flashlight.
    > Cable Length Measurement: The NF-8506 Network cable tester is a portable cable length tester. The cable tester can accurately measure the cable length in the range of 5-200m, find the cable fault distance and facilitate real-time field measurementt
    > PING Tester + IP Scanner: This handheld Ping cable tester can be used to diagnose and maintain local area networks (Lans) running TCP/IP protocols. Powerful PING capabilities can verify connections, check the integrity of transmitted and received data, indicate network traffic load by measuring round-trip times and provide IP addresses
    > Network Speed Test + Cable Continuity Test: Ethernet tester can quickly assess network speed issues. Conducts PING tests from multiple locations to gauge server and website response speeds. Allows users to ensure the integrity and connectivity of network cables by identifying any breaks, openings, or short circuits along the cable length.
    > POE Tester: Identifies PoE devices efficiently. Detects crossover methods (unknown/end-span/mi d-span/8-core power supply) and polarity. Comprehensive PoE detection, including non-standard, IEEE 802.3AF, and IEEE 802.3AT.
    > Port Flashing and Identification: Facilitates quick identification of network cable ports. Indicator lights on the connected port in the device flash to help locate cables accurately. Displays port information including operating rate, duplex mode, and negotiation settings.

    Product Specifications
     Model NF-8506
     Cable scan digital mode / analog mode
     Auto OFF
     Low power notice
     Transmitter  Cable continuity test remote & switch
     Port flash 10M/100M/1000M
     Cable length test 5-200 m (±3 m)
     POE  mid-span / end-span / AT-4 pairs
     PoE voltage test
     Link speed 10M/100M/1000M
    duplex / full duplex / half duplex
     Battery 3.7 V Li-ion battery
     Ping scan function
     IP scan function
     Transmitter dimensions 150x75x35 mm
     Recevier  NCV
     Power supply 3.7 V Li-ion battery
     Receiver size 200x50x33 mm

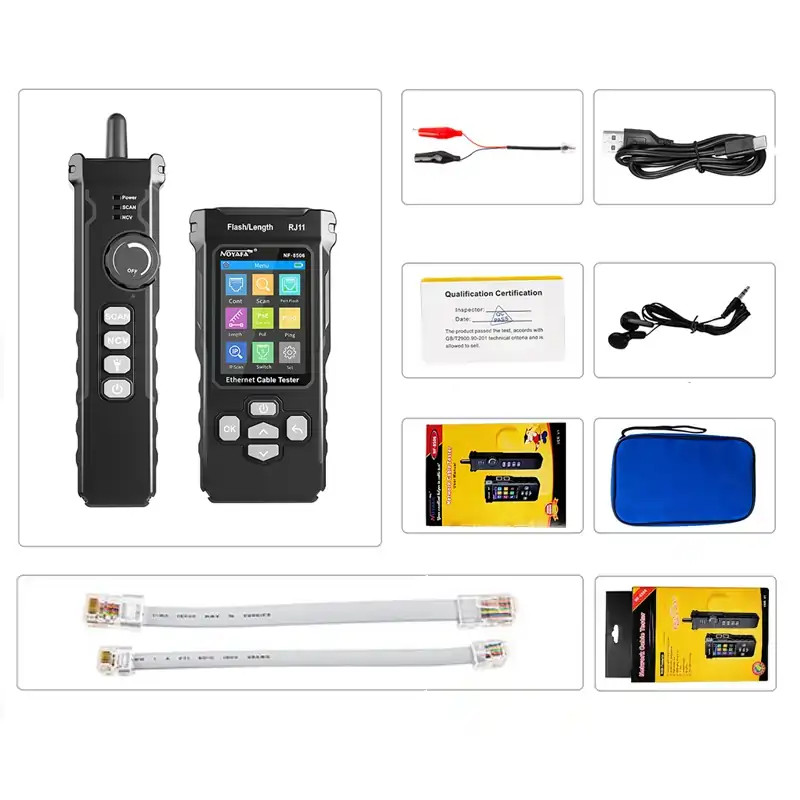

    Package list:

    • 1 * Transmitter
    • 1 * Receiver
    • 1 * Pair adapter cable
    • 1 * Earphone
    • 1 * Tool bag
    • 1 * Recharging cable
    • 1 * User manual (EN/DE/FR/ES)
    • size: 24x16x5.5 cm
    • weight: 550 g
