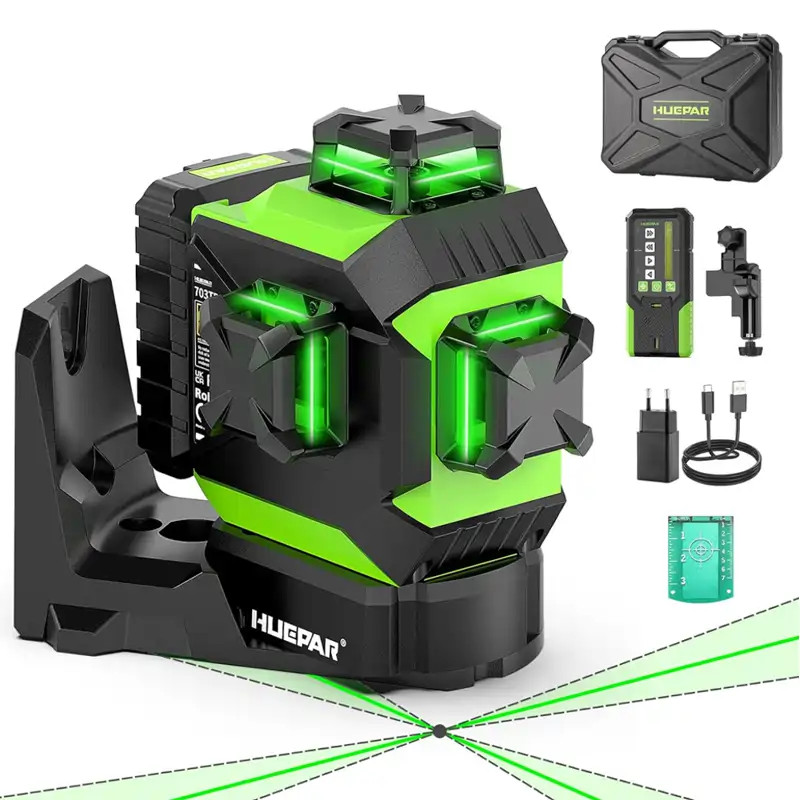

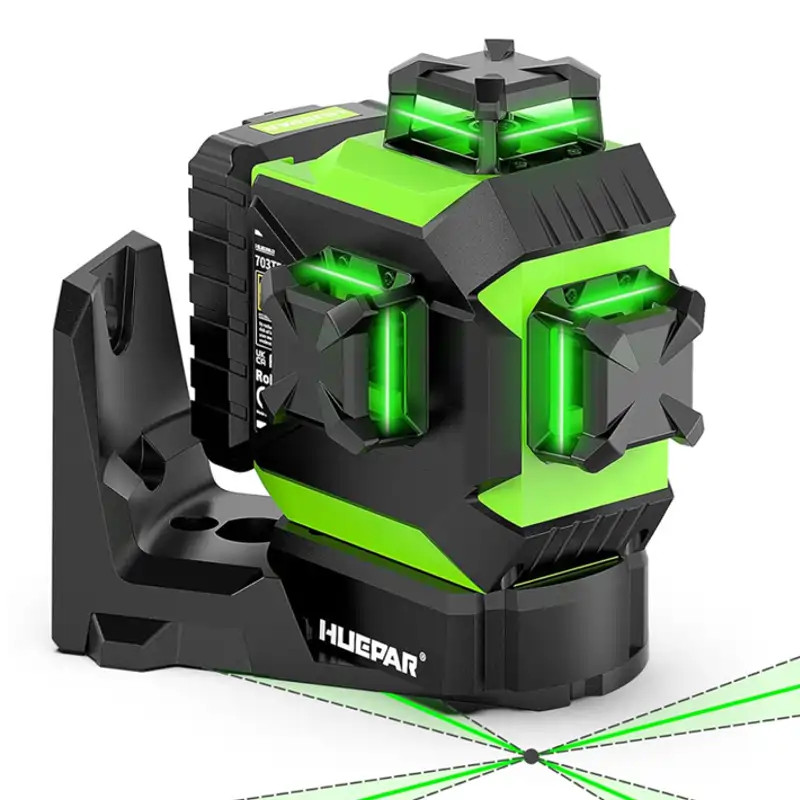

Huepar 703TR - 12 lines, 3D (3x360°) green beam laser level
The included outdoor receiver also functions as a remote control. The laser planes can be rotated around the intersection point in front of the device as the origin. (Electric Pivot-Around-Point function.) By placing the outdoor receiver at the target position, it remotely controls the device to rotate the vertical laser lines to the target position. Manual mode, pulse mode, green Osram laser.
-
Specifications:
- Laser Class: Class 2 (IEC/EN60825-1/2014), <1 mW power output
- Laser Wavelength: 505-520 nm
- Horizontal/Vertical Accuracy: ±2 mm / 10 m
- Leveling/Compensation Range: 3.5°
- leveling time: 3 s
- Tilt mode
- Outdoor mode
- Rotation around the laser cross point (pivot point) with automatic control
- Working Distance (radius): 20 m (100 LUX)*, 40-60 m with Huepar Receiver **
- Operating Time: >8 hours continuous use with all laser beams on
- Power Source: 3.7 V, 5200 mAh Li-ion battery
- Power adapter: 5 V, 2 A
- Charging port: USB-C
- IP Rating: IP54
- Operation Temperature Range: -10℃ ~ 50℃
- Storage Temperature Range: -20℃ ~ 70℃
- Mount Size: 1/4"; 5/8"
* Depends on ambient light conditions. The value means that 100 LUX plus brightness can be measured on the laser strip at a distance of 20 m. (Average indoor illumination is 200-300 LUX)
** This value applies to a standard receiver unit. With the Huepar LR300 detector, even greater ranges are possible. Compatible detector: Huepar LR-6RG; Huepar LR-5RG; Huepar LR-8RG
Package includes:
- 1 x Laser level
- 1 x Lithium battery 6600 mAh
- 1 x Type-C cable
- 1 x Power adapter
- 1 x Target Plate
- 1 x Laser recevier + remote control
- 1 x User Manual
- 1 x Hard carry case
- size: 37*30*14 cm
- weight: ~2.9 kg
-
5 850 Ft , (4 606 Ft+VAT)
15 750 Ft , (12 402 Ft+VAT)
21 350 Ft , (16 811 Ft+VAT)
29 950 Ft , (23 583 Ft+VAT)
-
87 630 Ft , (69 000 Ft+VAT)
95 250 Ft , (75 000 Ft+VAT)
92 000 Ft , (72 441 Ft+VAT)
88 900 Ft , (70 000 Ft+VAT)
-
manufacturer Hueparlaser class Class 2 (IEC/EN60825-1/2014), output power <1mWlaser wavelength (nm) 505-520number of laserdiode 2 vertical, 1 horizontallaser lines fan angles 3x360°accuracy ±2 mm / 10 mbluetooth xmobile app xLCD display xremote control √self leveling mode √tilt adjustment extras xleveling compensation range 3,5° ±1°self leveling time (s) 3working distance with detector (m) ⩾40distance of laser line from floor level (mm) 148power source rechargeable batteryrechargeable battery type Li-ion, 3,7 V, 6600 mAhoperating time (h) 8-9charging time (h) 5battery charging method outside the device, in the devicecharging power 5 V, 2 Aport xIP rating IP54operating temperature (°C) -10℃- +50℃storage temperature (°C) -20℃- +70℃housing material plastic, rubber coating, plastic laser window framebuttons foil push buttonthread mount 1/4''-20; 5/8-14the package device with integrated magnetic bracket, target plate, battery with powerbank function, charger, LR-XRG recevier+remote with bracket, sturdy plastic suitcasegarantie 2 yearsInventory NONEItem number hue-703trStatus NEWWeight 2.9 kg/pcs
