DEG 4D01-H16C - 16 line 4D (4x360°) green laser level with remote control, adjustable brightness level

Stock: In stock
DEG 4D01-H16C - 16 line 4D (4x360°) green laser level with remote control, adjustable brightness level
  • DEG 4D01-H16C - 16 line 4D (4x360°) green laser level with remote control, adjustable brightness level
79 500 Ft , (62 598 Ft+VAT)
shipping costs
:
Favourable delivery charges.
postage
:
domestic- 24h; international- 24-72h

For everyday use. 3 brightness levels, strobe mode, outdoor mode, many accessories, storage box.

  • Specifications:

    • Laser Beam: green, DEG laser diode
    • Projection: 16 Lines Green Laser Level
    • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW output
    • Laser Wavelength: 532 nm
    • Horizontal / Vertical Accuracy: ±3 mm / 10 m
    • Leveling / Compensation Range: 3°±1°
    • Leveling Time: ≤4 s
    • Tilt mode
    • Outdoor mode
    • 3 brightness levels (2 + strobe mode)*
    • Working Distance: 15-20 m **
    • Working Distance: ~40 m with detector ***
    • Laser line distance from floor level: 15 mm
    • Laser line distance from wall and ceiling: 9 mm
    • Working Time: About 7 hours
    • Power Source :12 V / 2600 mAh lithium battery
    • Charging Time:About 5 hrs
    • Mount Size: 1/4''
    • IP Rating: IP54
    • Operating Temperature: -10℃ ~ +50℃
    • Storage temperature: -20℃ ~ +70℃



    * strobe-like flashing increases visibility

    ** Depends on ambient light conditions.

    *** compatible with Huepar laser receviers: Huepar LR-6RG;  Huepar LR-5RG

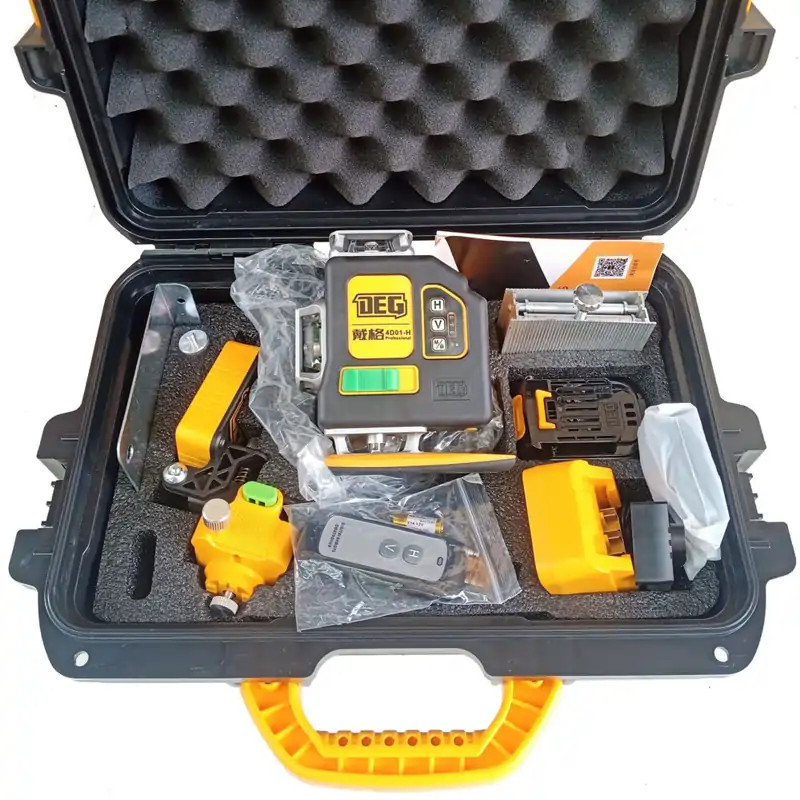

    Contents of the package:

    • hard plastic box
    • laser device
    • battery
    • charger
    • magnetic bracket
    • magnet plate
    • remote control
    • mini lift
    • ¼" - ⅝" adapter
    • manual
    • package weight: 3.7 kg
    • package size: 42x28x19 cm

  • manufacturer
    DEG
    laser class
    Class 2 (IEC/EN60825-1/2014), output power &lt;1mW
    laser diode
    green, DEG laserdiode
    levelling method
    pendulum
    laser wavelength (nm)
    520
    number of laserdiode
    2 vertical, 2 horizontal
    number of laser lines
    16
    rotatable laser window
    x
    laser lines fan angles
    4x360°
    accuracy
    ±3 mm / 10 m
    bluetooth
    x
    mobile app
    x
    LCD display
    x
    remote control
    self leveling mode
    tilt mode
    √, *
    tilt adjustment extras
    x
    outdoor mode
    leveling compensation range
    3° ±1°
    self leveling time (s)
    4
    working distance (m)
    15-20
    adjustable brightness level
    √, 2 + stroboscope mode
    working distance with detector (m)
    40
    distance of laser line from floor level (mm)
    15
    laser line distance from wall and ceiling (mm)
    9, 9, 9
    power source
    rechargeable battery
    rechargeable battery type
    Li-ion, 12 V, 2600 mAh
    operating time (h)
    8-16 (depends on brightness)
    charging time (h)
    5
    battery charging method
    outside the device
    charging power
    input: 5 v 2 A: output: 12 V, 0,6 A
    port
    x
    IP rating
    IP54
    operating temperature (°C)
    -10℃- +50℃
    storage temperature (°C)
    -20℃- +70℃
    housing material
    plastic, rubber coating, robust metal laser window frame
    device weight (g)
    680 (895)
    device dimensions (l*h*w) (mm)
    148x125(140)x78
    thread mount
    1/4''-20
    the package
    device, massive magnetic bracket: lift & fine adjustment, magnet plate, lift, charger, battery, remote control, ¼ - ⅝ adapter, manual, sturdy padded plastic suitcase
    Stock
    In stock
    Article No.
    deg-4d01h16c
