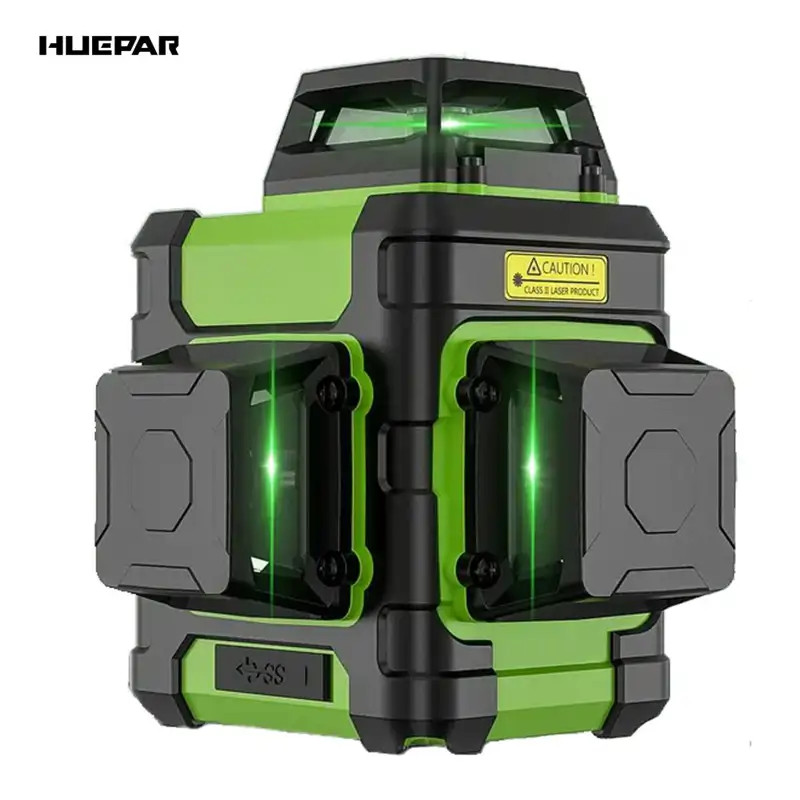

Huepar HM03CG - 12 lines, 3D (3x360°) compact green laser level

Stock: In stock
Huepar HM03CG - 12 lines, 3D (3x360°) compact green laser level
  • Huepar HM03CG - 12 lines, 3D (3x360°) compact green laser level
59 500 Ft , (46 850 Ft+VAT)
shipping fee
Favourable delivery charges.
postage >
Domestic- 24h; international- 24-72h

Designed primarily for DIY use, but also suitable for everyday use. Outdoor mode, tilt mode, Osram laser.

  • Specifications:

    • Laser Beam: Green Beam
    • Projection: 12 Lines Green Laser Level
    • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW output
    • Laser Wavelength: 505-520 nm
    • Horizontal / Vertical Accuracy: ±3 mm / 10 m
    • Leveling / Compensation Range: 4°±1°
    • Leveling Time: ≤3 s
    • Tilt mode
    • Outdoor mode
    • Working Distance (radius, 100 LUX) :≥15 m *
    • Working Distance: ≥40 m with detector **
    • Laser line distance from wall and ceiling: 11 mm
    • Working Time: About 8 hours
    • Power Source :3.7 V / 4000 mAh-lithium battery
    • Charging Port:Type-C
    • Charging Time:About 5 hrs
    • Mount Size: 1/4''
    • IP Rating: IP54
    • Operating Temperature: -10℃ ~ +50℃
    • Storage temperature: -20℃ ~ +70℃

    * Depends on ambient light conditions.

    ** compatible with Huepar laser receviers: Huepar LR-6RG;  Huepar LR-5RG; Huepar LR-8RG


    > ABS

    > 360 green laser level & pulse mode: Huepar laser level has one 360° horizontal and two 360° vertical planes for users to cover the floor, wall, and ceiling all around the room. Through the "H" and "V" buttons, the three 360 °laser lines can be selected depends on job site applications. The green beam is twice bright as the red laser with working range up to 98 feet of accuracy within ± 3 mm at 10 m. The outdoor pulse mode extends the laser range up to 40 m with Huepar line laser detector.

    > Dual modes & self-leveling: Huepar 3D laser level with slide switch enables you to set 2 modes. In self-leveling mode, the laser beam blink fast when the tool is out of self-leveling range ±3°. Locking the pendulum initiates manual mode which locks the lines for manual alignment at other angles which are often required in decorating projects. Installing wainscoting on the stairs suddenly becomes a snap.

    > Type-C charging port and durable battery: Huepar HM03CG laser level is powered by a built-in 4000mAh 3.7 V Li-ion rechargeable battery that provides 8 hours of continuous running time. 4 battery indicators on the keypad allow users to know the current battery volume and charging protection helps prevent overcharging. With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

    > Mounting thread & 360° magnetic bracket: This green line laser has 1/4"-20 mount thread to be fixed on a tripod. 360° strong magnetic bracket allows for quick positioning to metal surfaces to hang the laser tool to the required angle and offers 1/4"-20 & 5/8"-11 mounting threads to suit different tripod threads. Two nail holes for more fixing methods when working. Two nail holes on the bracket for more fixing methods and suitable for picture & wallpaper hanging at home projects.

    > Full accessories & two-year warranty: IP54 waterproof design protects the unit from water splashes, dust, and construction debris and ensures you work well in hazardous working conditions. The kit has a hard carry case for much more convenient carrying and storing the laser tool. We provide a 24-Month after-sale service and lifetime technical support. Please contact us freely if you have any concerns. You will get 1x HM03CG laser level, 1x magnetic bracket, 1 x hard carry case, 1 x charger.


    Package Contents:

    • 1 x Huepar HM03CG
    • 1 x Type-C cord
    • 1 x Magnetic Bracket
    • 1 x User Manual
    • 1 x Hard carry case
    • Weight: 1,3 kg
    • Size: 24x18x11 cm




  • manufacturer
    laser class
    Class 2 (IEC/EN60825-1/2014), output power &lt;1mW
    laser diode
    green, OSRAM laser
    levelling method
    laser wavelength (nm)
    number of laserdiode
    2 vertical, 1 horizontal
    number of laser lines
    rotatable laser window
    laser lines fan angles
    ±3 mm / 10 m
    mobile app
    LCD display
    remote control
    self leveling mode
    tilt mode
    √, * *
    tilt adjustment extras
    outdoor mode
    leveling compensation range
    self leveling time (s)
    working distance (m)
    adjustable brightness level
    working distance with detector (m)
    distance of laser line from floor level (mm)
    laser line distance from wall and ceiling (mm)
    11, 11, 9
    power source
    rechargeable battery, direct input
    rechargeable battery type
    Li-ion, 3,7 V, 4000 mAh
    operating time (h)
    charging time (h)
    battery charging method
    in the device
    charging power
    5 V, 1 A; 5 V, 2 A
    IP rating
    operating temperature (°C)
    -10℃- +50℃
    storage temperature (°C)
    -20℃- +70℃
    housing material
    plastic, rubber coating, plastic laser window frame
    plastic slider, rubberised foil push button
    device weight (g)
    device dimensions (l*h*w) (mm)
    thread mount
    the package
    device with built in battery, 360° bracket, cable, manual, hard case
    2 years
