Product Details


Huepar GF360G - 12 lines, 3D (3x360°) Green Laser Level, Li-ion Battery, Osram laser

Stock: Out of stock

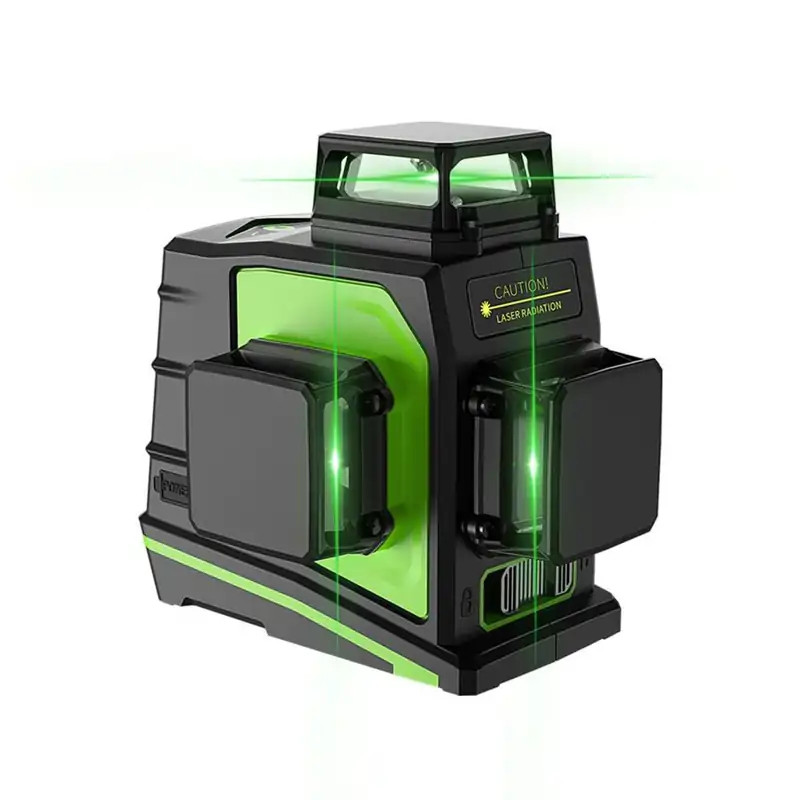

Huepar GF360G - 12 lines, 3D (3x360°) Green Laser Level, Li-ion Battery, Osram laser
  • Huepar GF360G - 12 lines, 3D (3x360°) Green Laser Level, Li-ion Battery, Osram laser
62 230 Ft , (49 000 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h
Out of stock

For everyday use, professional. Green OSRAM laser. Outdoor, indoor.

  • Specifications:

    • Type: 12 Lines
    • Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1 mW
    • Laser Wavelength: 505-520 nm
    • Leveling Accuracy: ±3 mm / 10 m
    • Leveling/Compensation Range: 4°±1°
    • Working Distance* : 20 m, up to 40 m with laser receiver**
    • Operating Time: 8-9 hours with all laser beams on
    • Spread Coverage: H360°/ V360° / V360° (3*360°)
    • Power Source: 5200 mAh Li-ion battery
    • IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough.
    • Operation Temperature Range: -10℃-+50℃
    • Storage Temperature Range: -20℃-+70℃



    * Depends on ambient light conditions.

    ** compatible with Huepar laser receviers: Huepar LR-6RG;  Huepar LR-5RG; Huepar LR-8RG

    Features:

    > FULL LAYOUT WITH 3 x 360 LINE LASER: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room. Two vertical lines cross at 90° angles makes user quickly visualize and square the layout. With our smart pendulum system, this green self leveling laser and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.

    > DUAL POWER METHODS&USB CHARGING PORT: Huepar GF360G green self leveling laser employed a large capacity of 3.7V / 5200mAh Li-ion Battery and provides long running time. The Li-ion Battery can be recharged in the battery charger (included in the package) separately as well as in the laser tool. When taking out the battery, the cross line laser level can be used at the job site by plugged in directly. The power indicator on the charger and keypad allow users to know the charging status.

    > BRIGHTER GREEN LASER&OUTDOOR PULSE MODE: This green self-leveling laser level adopted the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. Under same light condition, the green beam is twice bright as the red laser with a working range up to 130 feet(100LUX) of accuracy within ±1/9 Inch at 33 Feet. The outdoor pulse mode helps extend the laser range up to 200ft with Huepar Line Laser Receiver LR-6RG/LR-5RG in bright-light or outdoor conditions.

    > MULTIPLE INSTALLATION METHODS: This green self leveling laser level offers 1/4"-20 and 5/8"-11 mounting threads for being fixed on tripod or mounting pole. Equipped with a magnetic pivoting base, the laser tool can be rotated to the required angle. The magnetic base also has 1/4"-20 & 5/8"-11 mounting threads to suit for different tripod threads. Strong magnets on the base allows for attachment to metal track and steel. In addition, the laser covers can be removed and replaced with a screwdriver.

    > DURABLE DESIGN & PACKAGE CONTENTS: IP54 water/dust-proof ensures you work well under hazardous working conditions. Protected by TPR soft rubber on all sides makes the laser level shock resistant, wear resistant and impact resistant. Package includes self leveling laser level, Li-ion battery, battery charger, magnetic bracket, USB power cord, power adapter, laser target plate, portable bag, user manual.



    Packaging contents:

    • 1 x Laser Level
    • 1 x Lithium battery
    • 1 x Power adapter
    • 1 x USB Power Cable
    • 1 x Magnetic Base
    • 1 x Target Plate
    • 1 x Carrying bag
    • 1 x User Manual
    • weight 1.37 kg
    • size: 20x16x15 cm



  • manufacturer
    Huepar
    laser class
    Class 2 (IEC/EN60825-1/2014), output power &lt;1mW
    laser diode
    green, OSRAM laser
    levelling method
    pendulum
    laser wavelength (nm)
    505-520
    number of laserdiode
    2 vertical, 1 horizontal
    number of laser lines
    12
    rotatable laser window
    x
    laser lines fan angles
    3x360°
    accuracy
    ±3 mm / 10 m
    bluetooth
    x
    mobile app
    x
    LCD display
    x
    remote control
    x
    self leveling mode
    tilt mode
    √, * *
    tilt adjustment extras
    x
    outdoor mode
    leveling compensation range
    3,5° ±1°
    self leveling time (s)
    3
    working distance (m)
    15-20
    adjustable brightness level
    x
    working distance with detector (m)
    30-40
    laser line distance from wall and ceiling (mm)
    10, 11, 10
    power source
    rechargeable battery, direct input
    rechargeable battery type
    Li-ion, 3,7 V, 5200 mAh
    operating time (h)
    8-9
    charging time (h)
    6
    battery charging method
    in the device, outside the device
    charging power
    5 V, 1 A; 5 V, 2 A
    port
    micro USB
    IP rating
    IP54
    operating temperature (°C)
    -10℃- +50℃
    storage temperature (°C)
    -20℃- +70℃
    housing material
    plastic, rubber coating, plastic laser window frame
    device weight (g)
    470 (560)
    device dimensions (l*h*w) (mm)
    130x120x85
    thread mount
    1/4''-20; 5/8-14
    the package
    device, simple magnetic bracket, target plate, battery, charger, manual, cloth bag
    garantie
    2 years
    Stock
    Out of stock
    Article No.
    hue-gf360g
    Weight
    1.35 kg/pcs
