Main Category >o laser level >> 12 lines: 3D, 3x360° >>> wall (horizon laser on top)

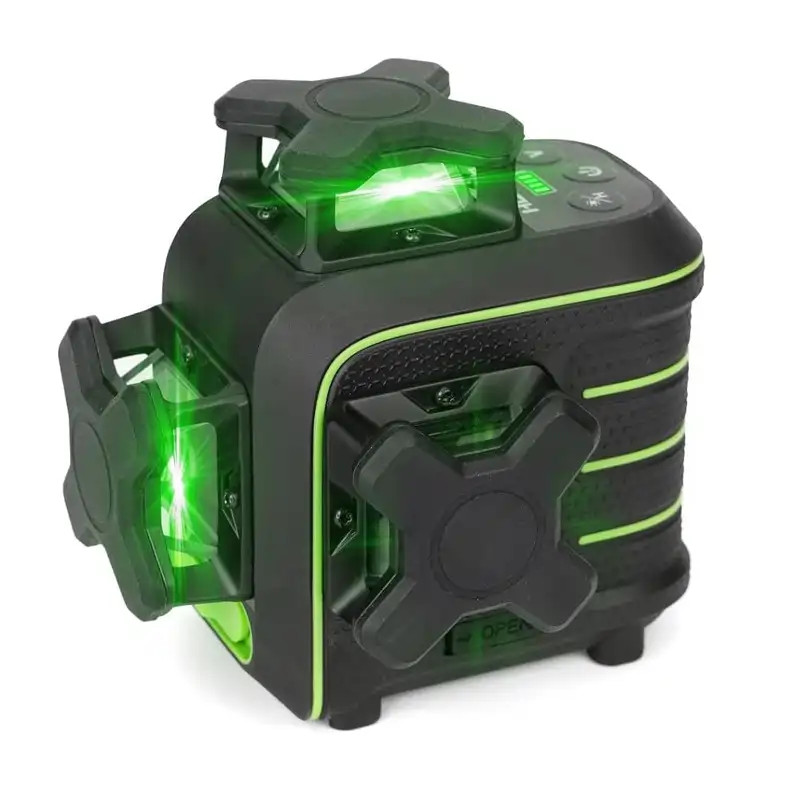

Huepar U03CG - 12 lines, 3D (3x360°) green laser level with tripod

NEW
Inventory: VAN
Huepar U03CG - 12 lines, 3D (3x360°) green laser level with tripod
  • Huepar U03CG - 12 lines, 3D (3x360°) green laser level with tripod
79 880 Ft , (62 898 Ft+VAT)
shipping fee
:
Favourable delivery charges.
postage >
:
Domestic- 24h; international- 24-72h
pcs Add to Cart Add to Cart

A device suitable for daily use, supplied with a tripod (46–114 cm) in a carrying case. Features outdoor mode, tilt mode, and a shock-resistant design.

Details Related products Similar products Data

  • Specifications:

    • Laser Beam: Green Beam
    • Projection: 12 Lines Green Laser Level
    • Laser Class: Class 2 (IEC/EN60825-1/2014), <1 mW output
    • Laser Wavelength: 510-530 nm
    • Horizontal / Vertical Accuracy: ±3 mm / 10 m
    • Leveling / Compensation Range: 3°±1°
    • Leveling Time: 4 s
    • Tilt mode
    • Outdoor mode
    • Working Distance (radius, 100 LUX): 15-20 m*
    • Working Distance: 40 m with detector**
    • Working Time: About 7 hours
    • Power Source: 3.7 V / 2000 mAh lithium battery
    • Charging Port:Type-C
    • Charging Time: About 4 hrs
    • Mount Size: 1/4''
    • IP Rating: IP54
    • Operating Temperature: -10℃ ~ +50℃
    • Storage temperature: -20℃ ~ +45℃

    * Depends on ambient light conditions.

    ** compatible with Huepar laser receviers: Huepar LR-5RG; Huepar LR-6RG;  Huepar LR-8RG  Huepar LR300

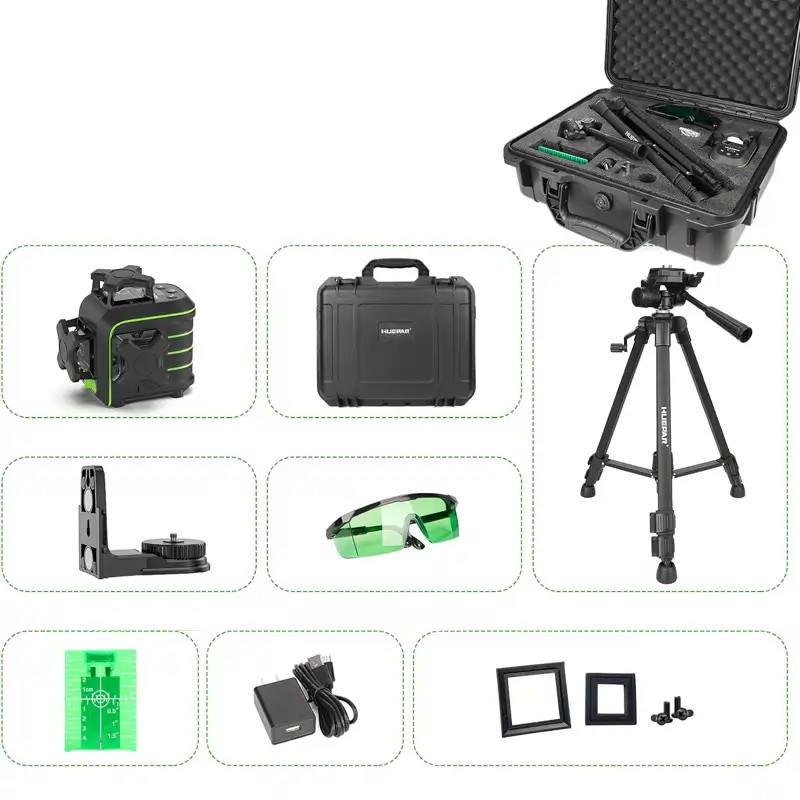

    Package Contents:

    • 1 × U03CG Laser Level Tool
    • 1 × Magnetic L-Bracket
    • 1 × Power Adapter & USB Cable
    • 1 × English Manual
    • 1 × Plastic Carrying Case
    • 1 × Target Board
    • 1 × Safety Glasses
    • 1 × Tripod (46-114 cm)
    • 1 × Window Shield Accessories & Screws
    • weight: 4.2 kg
    • size: 45x36x16 cm



  • manufacturer
    Huepar
    laser class
    Class 2 (IEC/EN60825-1/2014), output power &lt;1mW
    laser diode
    green, OSRAM laser
    levelling method
    pendulum
    laser wavelength (nm)
    510-530
    number of laserdiode
    2 vertical, 1 horizontal
    number of laser lines
    12
    rotatable laser window
    x
    rotation around pivot
    x
    laser lines fan angles
    3x360°
    accuracy
    ±3 mm / 10 m
    bluetooth
    x
    mobile app
    x
    LCD display
    x
    remote control
    x
    self leveling mode
    √
    tilt mode
    √, * *
    motorized rotating
    x
    tilt adjustment extras
    x
    outdoor mode
    √
    leveling compensation range
    3° ±1°
    self leveling time (s)
    4
    working distance (m)
    15-20
    adjustable brightness level
    √, 3
    displacement protection
    x
    working distance with detector (m)
    40
    distance of laser line from floor level (mm)
    108
    laser line distance from wall and ceiling (mm)
    15, 15, 14
    power source
    rechargeable battery, direct input
    rechargeable battery type
    Li-ion, 3,7 V, 2000 mAh
    operating time (h)
    7
    charging time (h)
    4
    battery charging method
    in the device
    charging power
    5 V, 1 A; 5 V, 2 A
    port
    USB-C
    IP rating
    IP54
    operating temperature (°C)
    -10℃- +50℃
    storage temperature (°C)
    -20℃- +45℃
    housing material
    plastic, rubber coating, metal laser window frame with rubber coating
    buttons
    plastic slider, foil push button
    device weight (g)
    580 (680)
    device dimensions (l*h*w) (mm)
    126x121x90
    thread mount
    1/4''-20
    the package
    device, 360° bracket, tripod, target plate, battery, charger, glasses, manual, sturdy padded plastic suitcase
    garantie
    2 years
    Inventory
    VAN
    Item number
    hue-u03cg
    Status
    NEW
    Weight
    4.2 kg/pcs
